Removal

1.	Disconnect the negative (-) battery terminal.

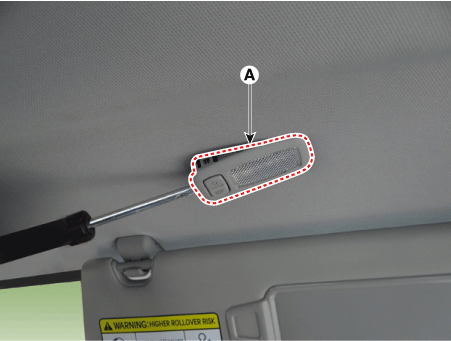

2.	Detach the vanity lamp (A) using a flat-tip screwdriver.

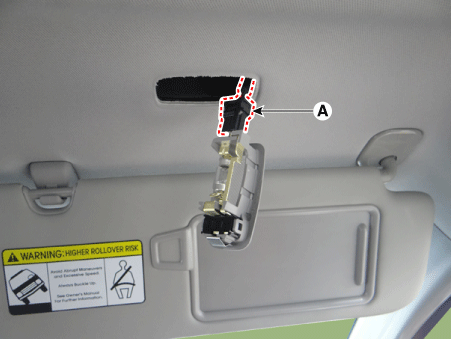

3.	Disconnect the vanity lamp connector (A).

Bulb Replacement

1.	Detach the vanity lamp (A) using a flat-tip screwdriver.

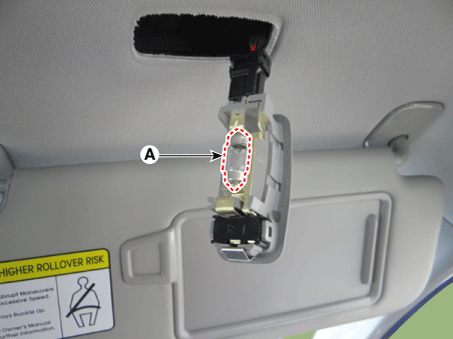

2.	Remove the vanity lamp bulb (A).

Installation

1.	Connect the vanity lamp connector.

2.	Install the vanity lamp.

3.	Connect the negative (-) battery terminal.

Room Lamp Repair procedures

Removal • Put on gloves to prevent hand injuries. • ...

Personal Lamp Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Detach the personal lamp (A) using a flat-tip screwdriver. ...
