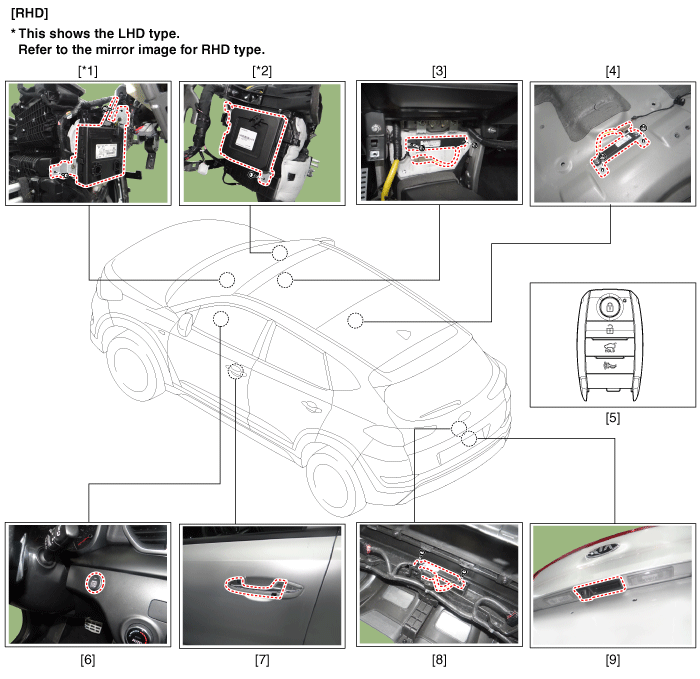

Component Location

1. Smart key unit (SMK)
2. Body control module (BCM)
3. Interior antenna 1
4. Interior antenna 2
5. FOB key
6. Start Stop Button (SSB)
7. Door handle & door antenna
8. Bumper antenna
9. Tailgate lid switch
