Kia Sportage: Lighting System / Personal Lamp Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Lighting System / Personal Lamp Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

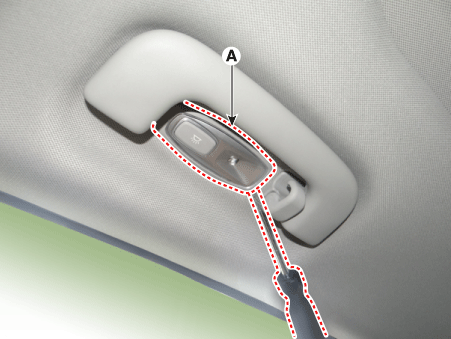

2.	Detach the personal lamp (A) using a flat-tip screwdriver.

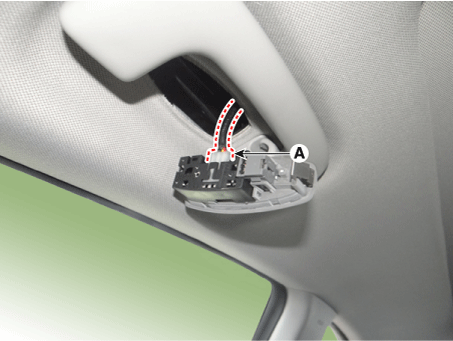

3.	Disconnect the personal lamp connector (A).

Installation

1.	Connect the personal lamp connector.

2.	Install the personal lamp.

3.	Connect the negative (-) battery terminal.

Vanity Lamp Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Detach the vanity lamp (A) using a flat-tip screwdriver. ...

Overhead Console Lamp Repair procedures

Inspection 1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map l ...
