Kia Sportage: Rear Door / Rear Door Belt Outside Weatherstrip Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip Repair procedures

Replacement
1.
Pull down the rear door window glass to the lowest level by pressing the power window glass switch.
2.

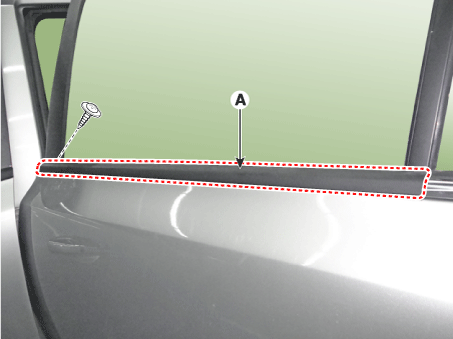

Remove the rear door belt outside weatherstrip (A) after loosening the mounting screw.

3.
Install in the reverse order of removal.

Replace any damaged clips.
