Kia Sportage: Lighting System / Overhead Console Lamp Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Lighting System / Overhead Console Lamp Repair procedures

Inspection
1.

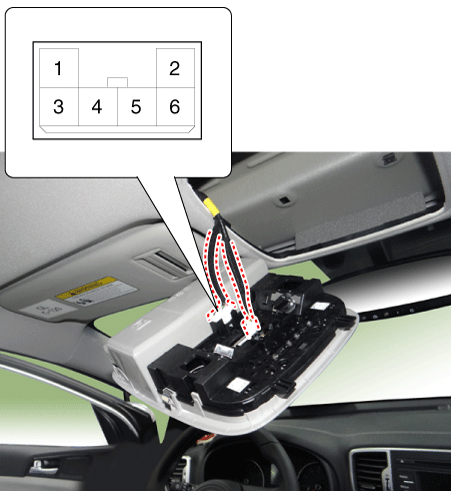

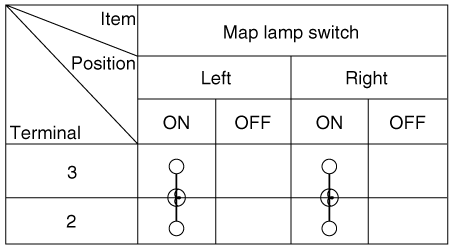

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

Removal
1.
Disconnect the negative (-) battery terminal.
2.

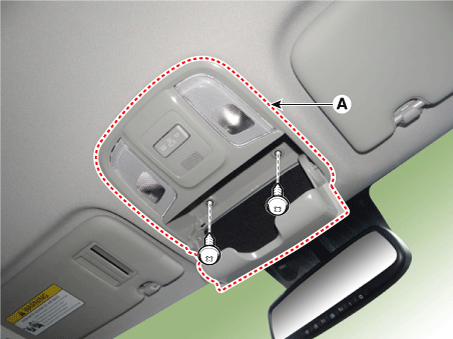

Remove the two mounting screws.
Then, remove the overhead console (A).

3.

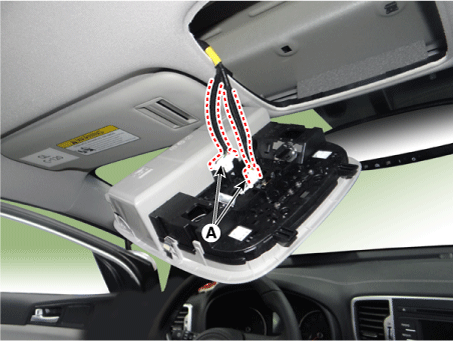

Remove the overhead console after disconnecting the connectors (A).

Installation
1.
Install the overhead console lamp after connecting the connector.
2.
Install the lens after tightening 2 screws.
Personal Lamp Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Detach the personal lamp (A) using a flat-tip screwdriver. ...

Hazard Lamp Switch Repair procedures
Inspection 1. Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch. [Manual type] ...
