Kia Sportage: Lighting System / Hazard Lamp Switch Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch Repair procedures

Inspection
1.

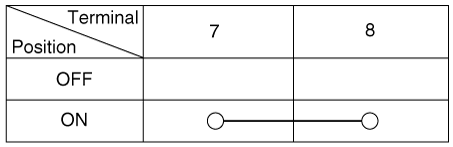

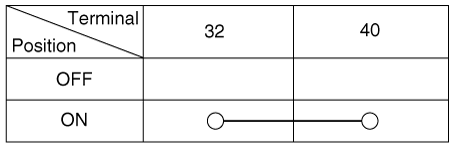

Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch.

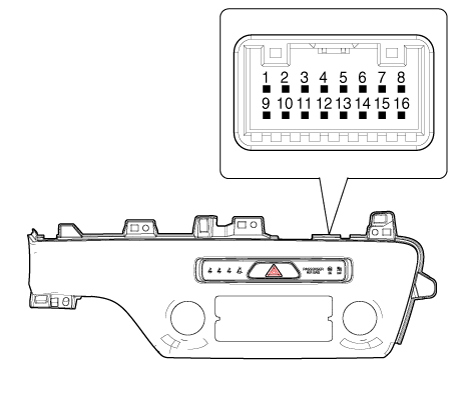

[Manual type]

No.
Description
No.
Description
1
Battery (+)
9
ILL (+)
2
IGN
10
Signial
3
-
11
-
4
Passenger side seat belt
12
Rear left seat belt
5
Rear center seat belt
13
Rear right seat belt
6
PAB ON
14
PAB OFF
7
Hazard indicator
15
-
8
Ground
16
ILL (-)

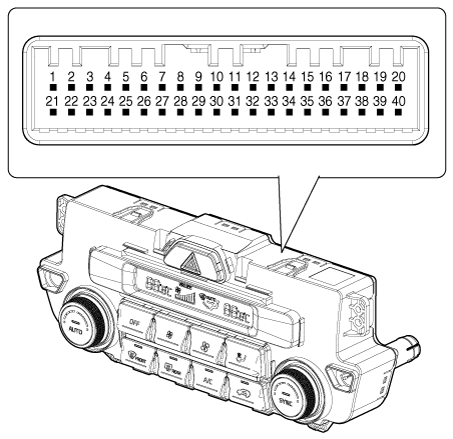

[AUDIO type]

Connector Pin Information
No.
Description
No.
Description
1
Battery (+)
21
IGN1
2
ILL+ (TAIL)
22
ISG Power
3
IGN2
23
Rear Defogging Switch
4
Mode Control Actuator (VENT)
24
HTD
5
Mode Control Actuator (DEF)
25
Left Photo Sensor (-)
6
Driver side Temperature Control Actuator (COOL)
26
Right Photo Sensor (-)
7
Driver side Temperature Control Actuator (WARM)
27
PAB IGN1
8
Intake Actuator (FRE)
28
Evaporator Temperature Sensor
9
Intake Actuator (REC)
29
Ambient Temperature Sensor
10
Mode Control Actuator F/B
30
Cluster Ionizer Diagnosis
11
Driver side Temperature Control Actuator F/B
31
Clean Signal
12
Intake Actuator F/B
32
Hazard Signal
13
DETENT OUT (+)
33
PTC ON Signal (Deisel only)
14
C CAN HIGH
34
PTC Relay 2 (Deisel only)
15
C CAN LOW
35
PTC Relay 3 (Deisel only)
16
Blower Motor (+)
36
Hazard Blinking
17
Mosfet (Drain F/B)
37
ECV (-) Ground
18
Mosfet (Gate)
38
ECV (+)
19
PAB Signal
39
PAB OFF Signal
20
ILL- (RHEO)
40
Ground

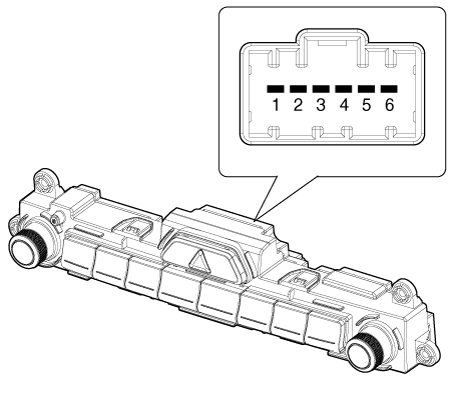

[AVN Type]

No.
Description
1
Battery (+)
2
Hazard Switch Output
3
Ground
4
Hazard Switch Input
5
ILL (-)
6
ILL (+)

Removal
[Manual type]
1.
Remove the center fascia lower panel.
(Refer to Body - "Center Fascia Panel")
2.

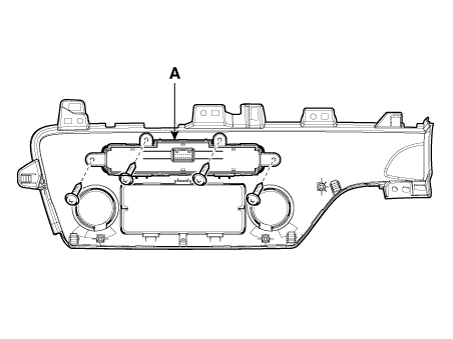

Remove the hazard switch (A) after loosening the screws.

[AUDIO type]
1.
Remove the heater & A/C control unit.
(Refer to Heating,Ventilation And Air Conditioning - "Heater & A/C Control Unit (DATC)")
[AVN Type]
1.
Remove the AVN keyboard unit.
(Refer to Body Electrcal System - "AVN Keyboard")
Installation
[Manual type]
1.
Install the hazard switch.
2.
Install the center fascia lower panel.
[AUDIO type]
1.
Install the heater & A/C control unit.
(Refer to Heating,Ventilation And Air Conditioning - "Heater & A/C Control Unit (DATC)")
[AVN Type]
1.
Install the AVN keyboard unit.
(Refer to Body Electrcal System - "AVN Keyboard")
