Kia Sportage: Automatic Transaxle Control System / Output Speed Sensor Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor Schematic diagrams

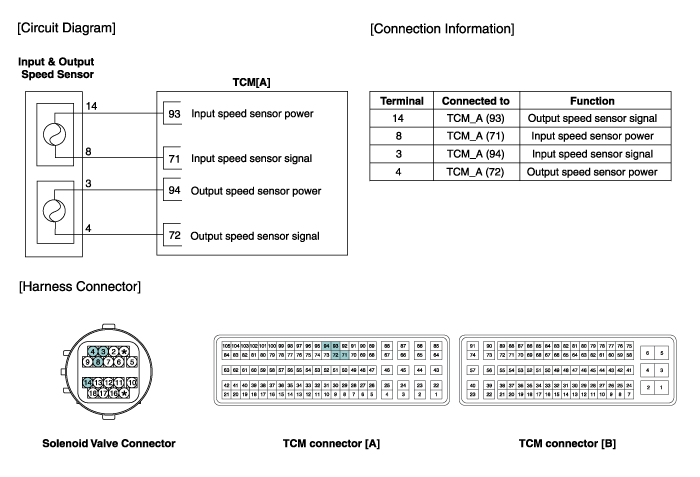

Circuit Diagram

Output Speed Sensor Specifications
Specification Item Specification Type Hall effect sensor Operating condition (°C)°F (-40 to 150) ...

Output Speed Sensor Repair procedures
Inspection 1. Switch "OFF" ignition. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - &qu ...
