Kia Sportage: Fuel Delivery System / Fuel Pressure Regulator Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Regulator Repair procedures

Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

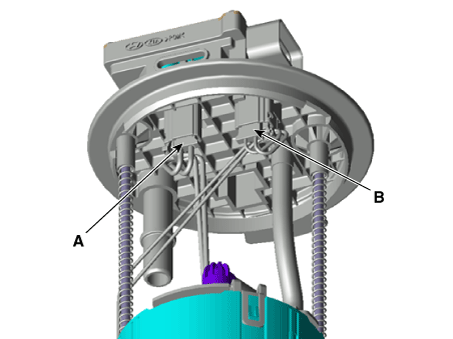

Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).

3.

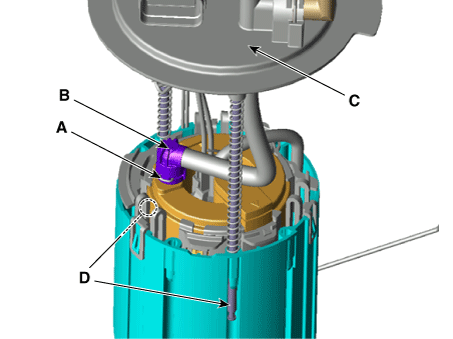

Remove the fixing clip (A), and then disconnect the feed tube (B).
4.
Remove the head assembly (C) after releasing the cushion fixing clip (D).

5.

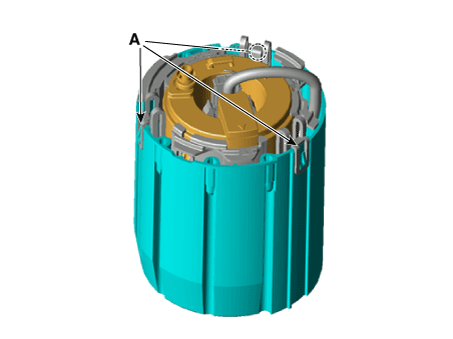

Remove the reservoir-cup after releasing the fixing hook (A).

6.

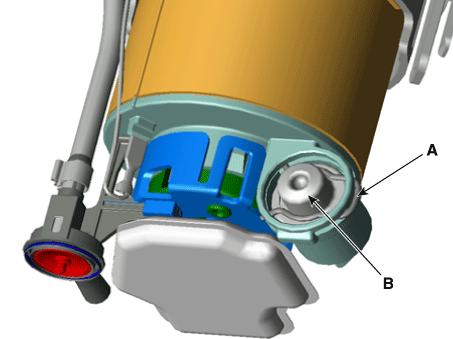

Remove the fuel pressure regulator fixing clip (A).
7.
Remove the fuel pressure regulator (B) from the fuel filter.

Installation
1.
Install in the reverse order of removal.
