Kia Sportage: Automatic Transaxle Control System / Output Speed Sensor Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor Repair procedures

Inspection
1.
Switch "OFF" ignition.
2.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
3.

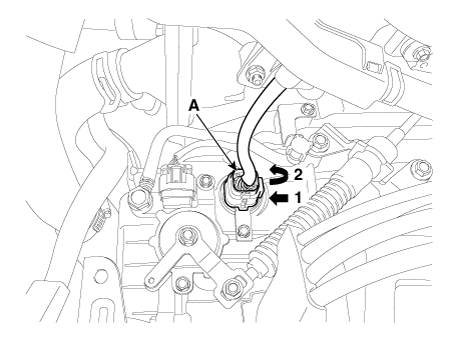

Disconnect the solenoid valve connector (A).

4.

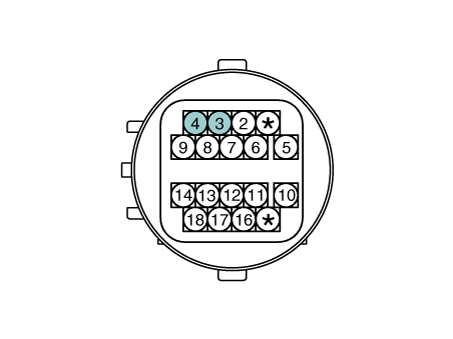

Measure the resistance between power terminal (3) and signal terminal (4).
Specification : Approx. 0.88 MΩ

Removal
1.
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover").
2.

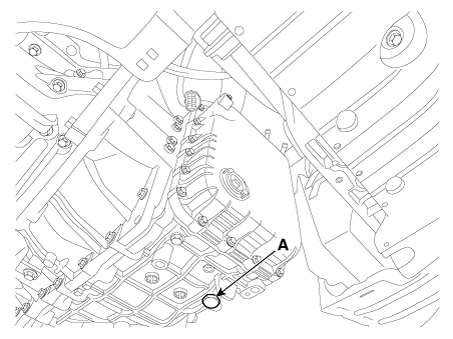

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:
33.3 - 43.1 N·m (3.4 - 4.4 kgf·m, 24.6 - 31.8 lb·ft)


The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
3.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
4.

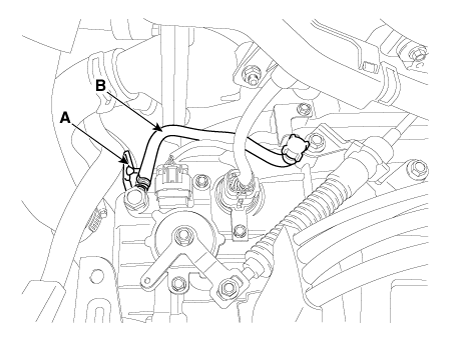

Remove the wiring bracket bolt (A) and air breather hose (B).

5.

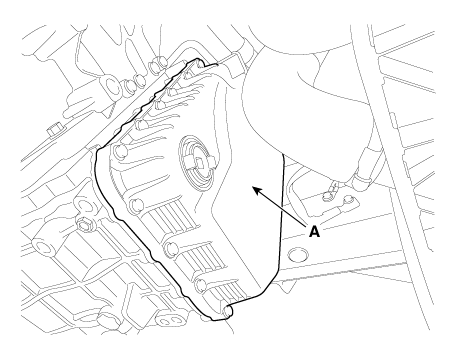

Remove the valve body cover (A).
Tightening torque:
11.8 - 13.7 N·m (1.2 - 1.4 kgf·m, 8.7 - 10.1 lb·ft)

6.

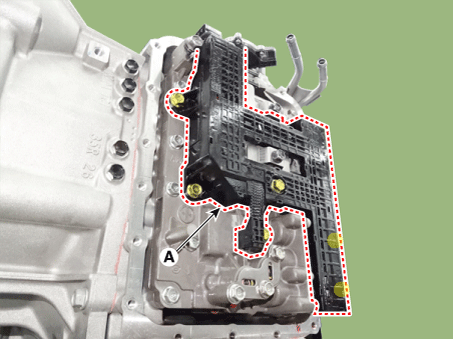

Remove the solenoid valve harness (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

7.

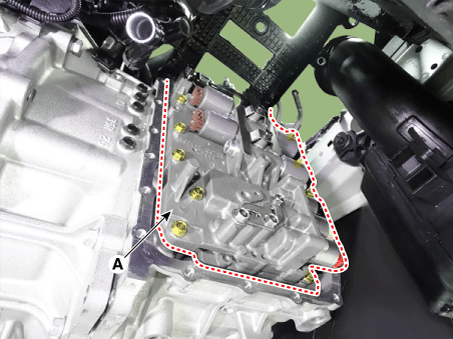

Remove the valve body assembly (A).
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

8.

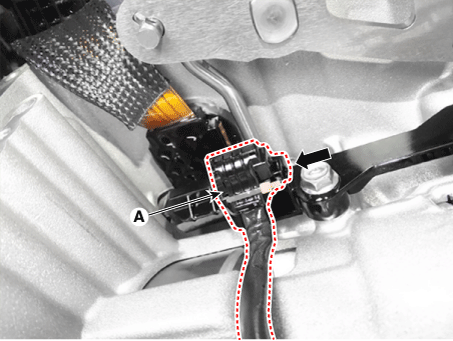

Disconnect the input/output speed sensor connector (A).

9.

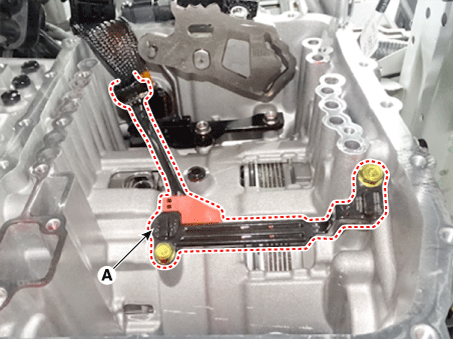

Remove the input/output speed sensor (A).
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

Installation
1.
Install in the reverse order of removal.

Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - "Fluid")
Confirm that there is no fluid leakage on connections after repairing.
