Kia Sportage: Mirrors / Erasing programmed HomeLink buttons

Kia Sportage QL (2015-2020) Owners Manual / Features of your vehicle / Mirrors / Erasing programmed HomeLink buttons

To erase the three programmed buttons (individual buttons cannot be erased):

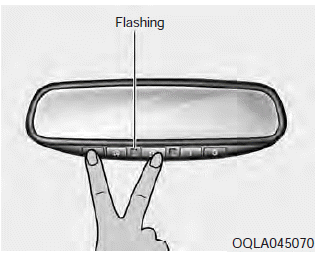

Press and hold the left and center buttons simultaneously, until the indicator light begins to flash (approximately 20 seconds). Release both buttons. Do not hold for longer than 30 seconds.

HomeLink is now in the train (or learning) mode and can be programmed at any time.

Operating HomeLink

To operate, simply press the programmed HomeLink button. Activation will now occur for the trained product (garage door, security system, entry door lock, estate gate, or home or office lighting). ...

Reprogramming a single HomeLink button

To program a device to HomeLink using a HomeLink button previously trained, follow these steps: 1. Press and hold the desired HomeLink button. Do NOT release until step 4 has been completed. 2. ...
