Kia Sportage: Fuses / Engine compartment fuse replacement

Kia Sportage QL (2015-2021) Owners Manual / Maintenance / Fuses / Engine compartment fuse replacement

1. Turn the ignition switch and all other switches off.

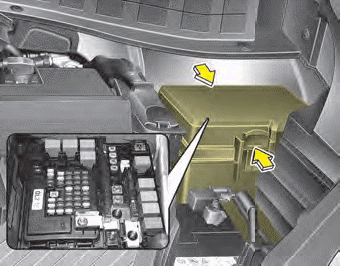

2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine compartment fuse box. Upon removal, securely insert reserve fuse of the same rating.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.

CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover through the audible clicking sound.

If not, electrical failures may occur from water contact.

Inner panel fuse replacement
1. Turn the ignition switch and all other switches off. 2. Open the fuse panel cover. If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster. C ...

Multi fuse
If the multi fuse is blown, it must be removed as follows: 1. Turn off the engine. 2. Disconnect the negative battery cable. 3. Remove the nuts shown in the picture above. 4. Replace the fuse wi ...
