Kia Sportage: Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve (35R/C_VFS) Description and operation

Kia Sportage QL (2015-2024) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve (35R/C_VFS) Description and operation

Description

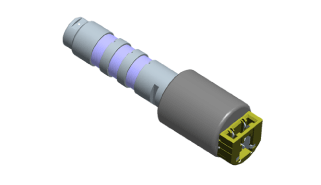

•	35R clutch control solenoid valve is a Variable Force Solenoid (VFS) type.

•	When TCM supplies variable current to solenoid valve, hydraulic pressure of 35R clutch is controlled by solenoid valve.

35R clutch control solenoid valve operation table

	35R/C_VFS
	N/L
N, P
1
2
3	●
4
5	●
6
R	●

● : Connected status

35R Clutch Control Solenoid Valve (35R/C_VFS) Components and components location

Component Location 1. 26 Brake Control Solenoid Valve (26/B) 2. 35R Clutch Control Solenoid Valve (35R/C) 3. Underdrive Brake Control Solenoid Valve (UD/B) ...

35R Clutch Control Solenoid Valve (35R/C_VFS) Schematic diagrams

Circuit Diagram ...
