Kia Sportage: Maintenance / Fuses
.png)
A vehicle’s electrical system is protected from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel
bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check
the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will
melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Always replace a blown fuse with one of the same rating. If the replacement fuse
blows, this indicates an electrical problem. Avoid using the system involved and
immediately consult an authorized Kia dealer.

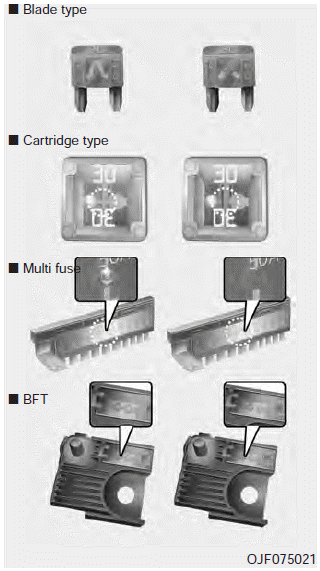

Three kinds of fuses are used: blade type for lower amperage rating, cartridge
type, and multi fuse for higher amperage ratings.
WARNING - Fuse replacement
- Never replace a fuse with anything but another fuse of the same rating.
- A higher capacity fuse could cause damage and possibly a fire.
- Never install a wire or aluminum foil instead of the proper fuse -
even as a temporary repair. It may cause extensive wiring damage and a possible
fire.
- Do not arbitrarily modify or add-on electric wiring to the vehicle.
CAUTION
Do not use a screwdriver or any other metal object to remove fuses because
it may cause a short circuit and damage the system.
✽ NOTICE
- When replacing fuse, turn the ignition “OFF” and turn off switches
of all electrical devices then remove battery (-) terminal.
- The actual fuse/relay panel label may differ from equipped items.
WARNING - Electrical Fire
Always ensure replacements fuses and relays are securely fastened when installed.
Failure to do so can result in a vehicle fire.
