Kia Sportage: AVN System / AVN Keyboard Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Body Electrical System / AVN System / AVN Keyboard Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the center fascia lower panel. (Refer to Body - "Center Fascia Panel")

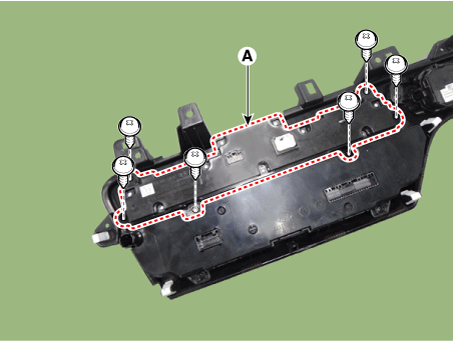

3.	Remove the AVN keyboard unit (A) after loosening the mounting screws.

Installation

1.	Install the AVN keyboard unit.

2.	Install the center fascia lower panel.

Connect the negative (-) battery terminal.

•	Make sure that the AVN keyboard connectors are plugged in properly.

•	Check the AVN system for normal operation.
