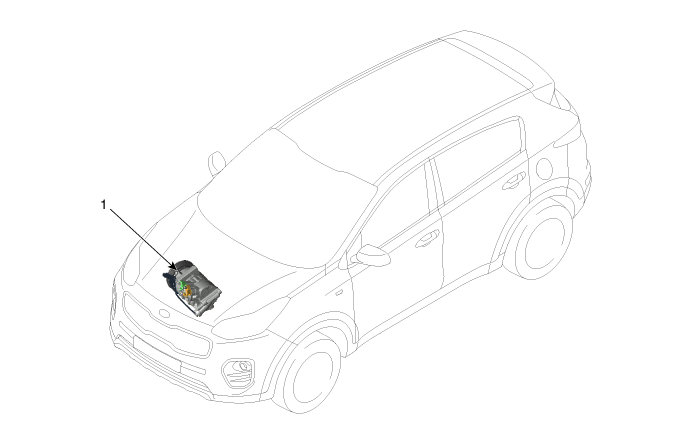

Component Location

1. Compressor

Components

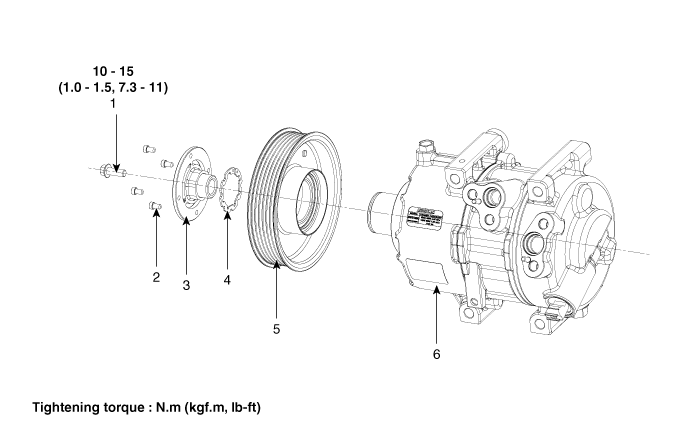

[THETA Engine]

1. Clutch Bolt
2. Limiter Bolt
3. Limiter & Hub Assembly
4. Snap Ring
5. Pulley
6. Compressor Assembly

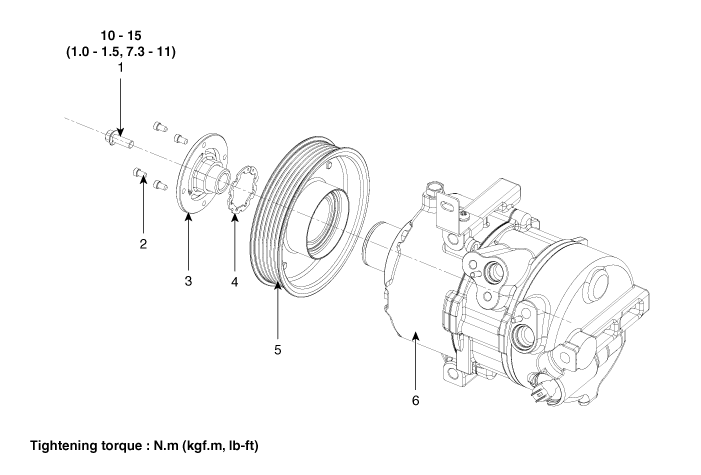

[R Engine]

1. Clutch Bolt
2. Limiter Bolt
3. Limiter & Hub Assembly
4. Snap Ring
5. Pulley
6. Compressor Assembly

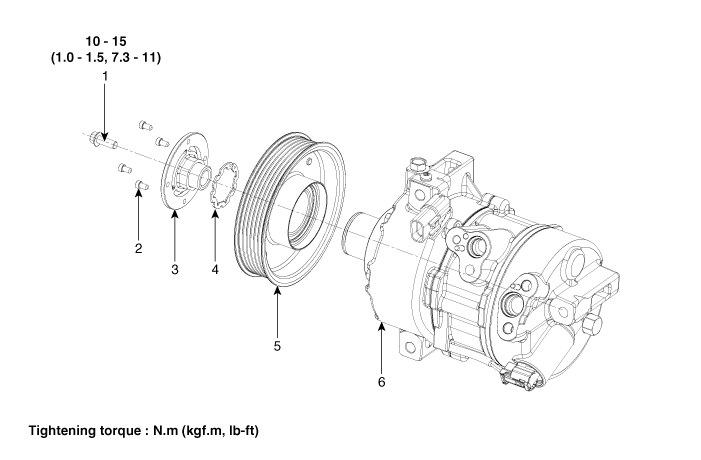

[NU Engine]

1. Clutch Bolt
2. Limiter Bolt
3. Limiter & Hub Assembly
4. Snap Ring
5. Pulley
6. Compressor Assembly

Refrigerant Line Repair procedures
Replacement 1. Discharge refrigerant from the refrigeration system. 2. Replace faulty tube or hose. ...

Compressor Description and operation
Description The compressor is the drive unit of the A/C system. Located on the side of the engine block, it is driven by the V-belt of the engine. The compressor changes low ...
