Kia Sportage: Seat Belt System / Seat Belt Reminder Repair procedures

Kia Sportage QL (2015-2023) Service Manual / Restraint / Seat Belt System / Seat Belt Reminder Repair procedures

Removal
1.
Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.
2.
Remove the front seat assembly.
(Refer to Body (Interior and Exterior) - "Front Seat Assembly")
3.
Remove the front seat cushion cover.
(Refer to Body (Interior and Exterior) - "Front Seat Cushion Cover")
4.

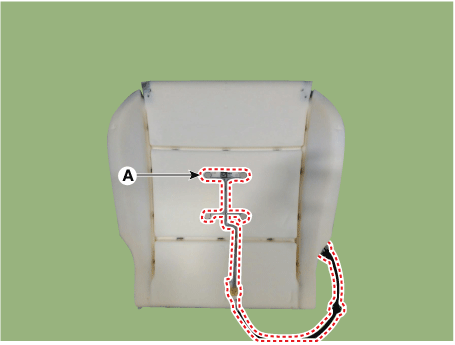

Remove the seat belt reminder sensor (A).

5.
Install in the reverse order of removal.
Seat Belt Reminder Components and components location
Components 1. Seat belt reminder sensor ...
