Kia Sportage: Smart Key System / Components and components location

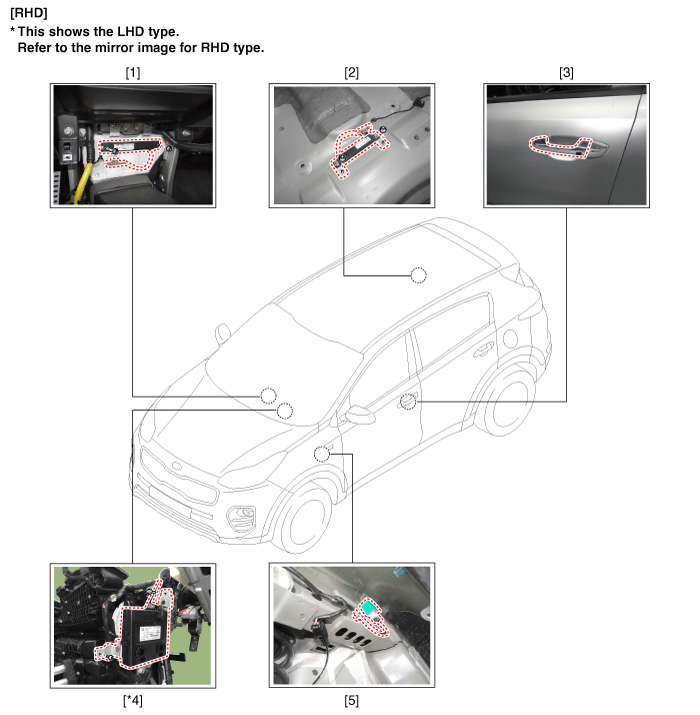

1. Interior antenna 1
2. Interior antenna 2
3. Door outside handle / Door antenna
|
4. Smart key unit (SMK)
5. Buzzer
|

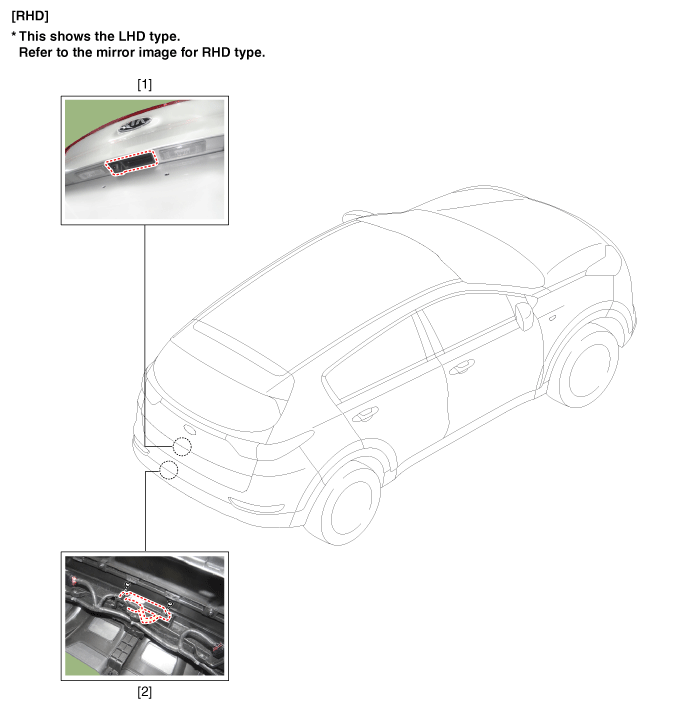

1. Tailgate open switch
|
2. Bumper antenna
|
Specifications
Smart Key Unit
Items
Specification
Rated voltage
DC 12 V
Operating voltage
DC 9 ...
Description
The SMART KEY system is a system that allows the user to access and operate
a vehicle in a very convenient way. To access the vehicle, no traditional key
or remote co ...
Other information:
The USB charger is designed to recharge batteries of small size electrical devices
using a USB cable.The electrical devices can be recharged when the Engine Start/Stop
button is in ACC/ON/START position.
The battery charging state may be monitored on the electrical device.
Disconnect the USB ...
System Circuit Diagram
Terminal Function
Housing
Pin
Function
Wire color
Pad
A
GND
Black
B
HEATER
Yellow
C
...
