Kia Sportage: Automatic Transaxle Control System / Automatic Transaxle System Components and components location

Kia Sportage QL (2015-2020) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Automatic Transaxle System Components and components location

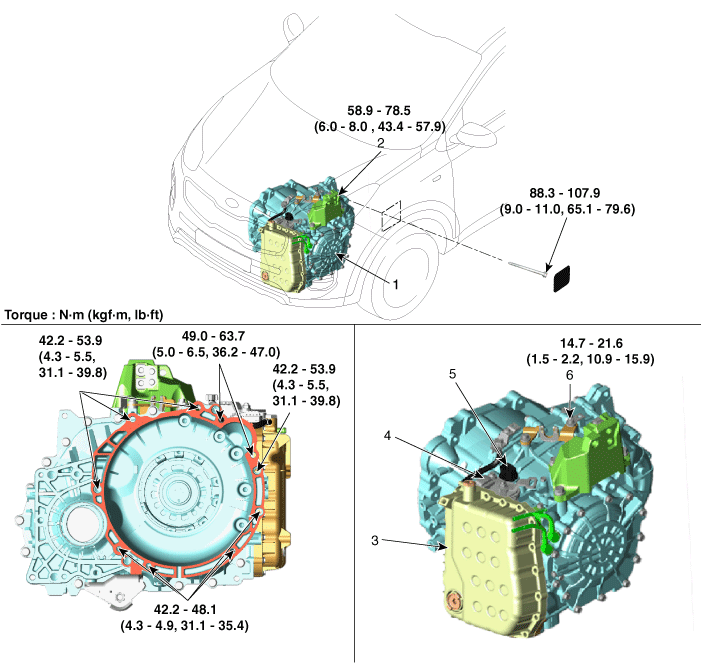

Components

1. Automatic transaxle assembly
2. Transfer assembly
3. Automatic transaxle support bracket
4. Torque convertor
5. Inhibitor switch
6. Solenoid valve connector
7. Manual control lever
8. ATF cooler pipe
9. Valve body cover

Shift Cable Repair procedures
Removal 1. Shift the gear to "N". 2. Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical System ...

Automatic Transaxle System Components and components location
Components 1. Automatic transaxle assembly 2. Transfer assembly 3. Automatic transaxle support bracket 4. Torque convertor 5. Inhibitor switch 6 ...
