Kia Sportage: Smart Key System / Smart Key Unit Components and components location

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Smart Key System / Smart Key Unit Components and components location

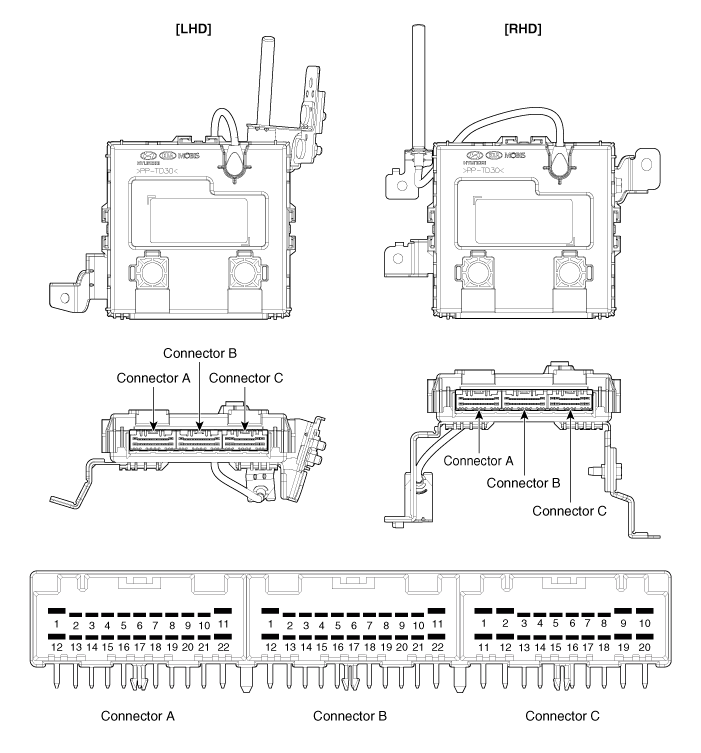

Components

Connector Pin Information
No.
Connector A
Connector B
Connector C
1
Battery (+)
IGN2 relay_output
Immoblizer antenna power_output
2
Battery (+)
IGN1 relay_output
Wheel speed signal_input
3
Interior antenna 1 GND_output
-
SSB switch1 signal_input
4
Bumpper antenna GND_output
-
-
5
Interior antenna 2 GND_output
ESCL communication
ESCL Unlock switch_input
6
Assist door antenna GND_output
EMS communication
'P' signal_input
7
-
B-CAN (High)
Brake switch_input
8
Driver's door antenna GND_output
B-CAN (Low)
IGN2 signal_input
9
-
C-CAN (Low)
IGN1 signal_input
10
SSB Illumination (+)_output
C-CAN (High)
Starter relay_output
11
External buzzer_output
-
Immoblizer antenna GND_output
12
ESCL Power_output
ACC relay_output
RPM signal_input
13
-
-
SSB switch2 signal_input
14
Interior antenna 1 Power_output
GND
Driver's door switch signal_input
15
Bumpper antenna Power_output
-
Assist door switch signal_input
16
Interior antenna 2 Power_output
SSB LED (ACC)_output
Start signal feedback_input
17
Assist door antenna Power_output
SSB LED (IGN)_output
 Stop lamp fuse signal_input
18
-
-
ACC signal_input
19
Driver's door antenna Power_output
-
-
20
-
SSB Illumination (-)_output
GND_power
21
ESCL Enable_output
-

22
ESCL GND_output
Wireless charging module_output
