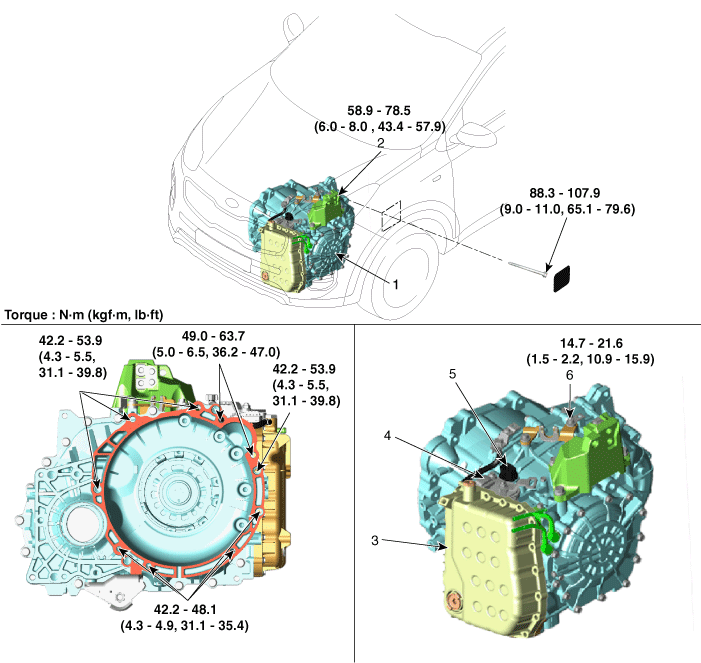

Components

1. Automatic transaxle assembly
2. Transfer assembly
3. Automatic transaxle support bracket
4. Torque convertor
5. Inhibitor switch
6. Solenoid valve connector
7. Manual control lever
8. ATF cooler pipe
9. Valve body cover

Automatic Transaxle System Components and components location
Components 1. Automatic transaxle assembly 2. Transfer assembly 3. Automatic transaxle support bracket 4. Torque convertor 5. Inhibitor switch 6 ...
