Kia Sportage: Automatic Transaxle Control System / 26 Brake Control Solenoid Valve (26/B_VFS) Schematic diagrams

Kia Sportage QL (2015-2020) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / 26 Brake Control Solenoid Valve (26/B_VFS) Schematic diagrams

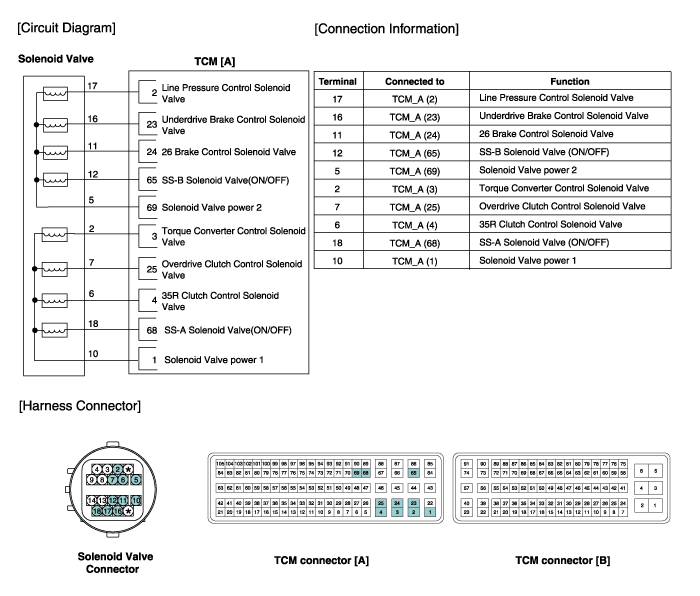

Circuit Diagram

26 Brake Control Solenoid Valve (26/B_VFS) Description and operation
Description • 26 Brake control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current to so ...

26 Brake Control Solenoid Valve (26/B_VFS) Repair procedures
Inspection 1. Switch "OFF" ignition. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - &qu ...
