| Inspection |
| 1. |
Switch "OFF" ignition.
|
| 2. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 3. |

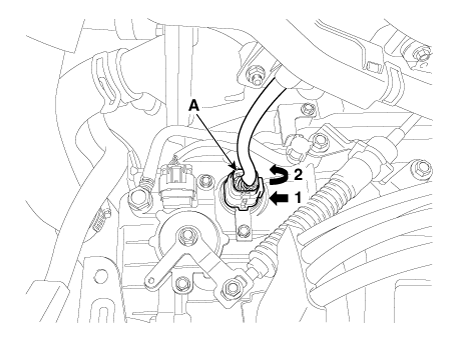

Disconnect the solenoid valve connector (A).
|
| 4. |

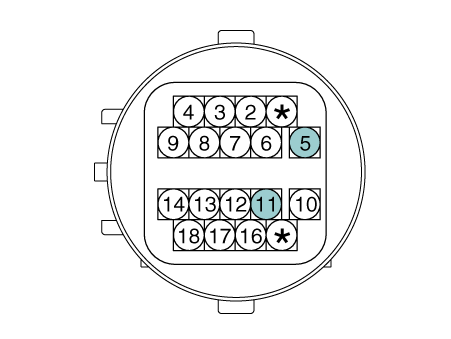

Measure the resistance between power terminal (5) and signal terminal
(11).
|
| Removal |
|
| 1. |
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover").
|
| 2. |

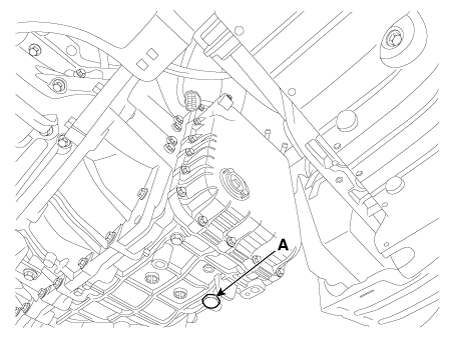

Remove the ATF drain plug (A), allow the fluid to drain out and then
reinstall the drain plug.
|
| 3. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 4. |

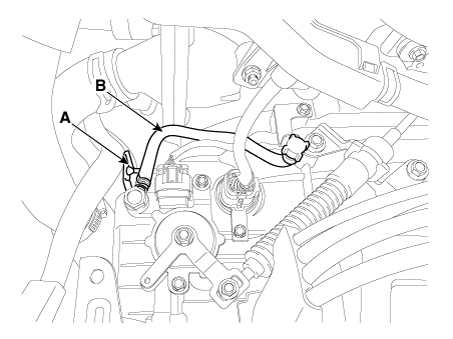

Remove the wiring bracket (A) and the air breather hose (B).
|
| 5. |
Lift the vehicle after loosening valve body cover upper bolts.
|
| 6. |

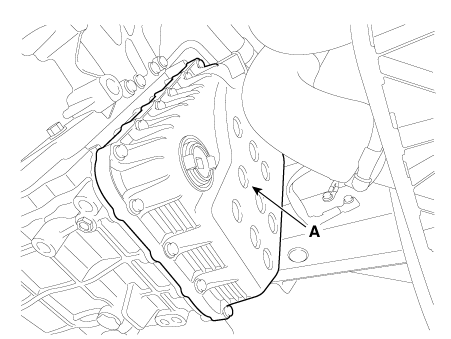

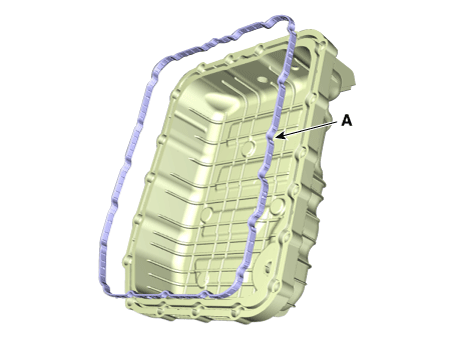

Remove the valve body cover (A) by loosening bolts.
|
| 7. |

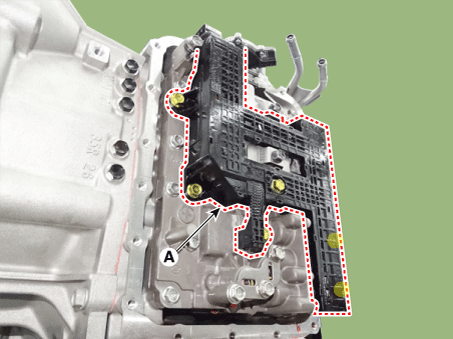

Remove the main harness module (A) after removing the bolts.
|
| 8. |

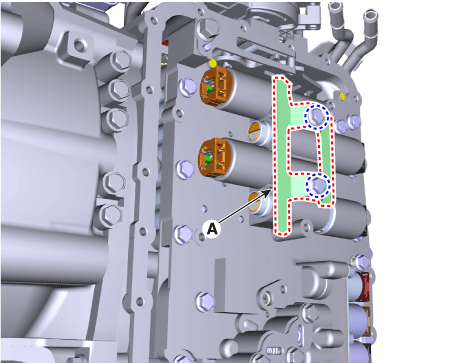

Remove solenoid valve support bracket (A) after loosening the bolts.
|
| 9. |

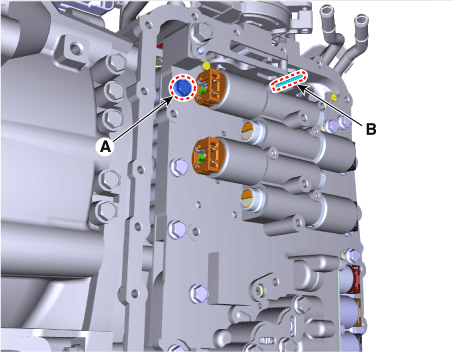

Remove the solenoid valve fixing pin (B) and loosen the valve body mounting
bolt (A).
|
| 10. |

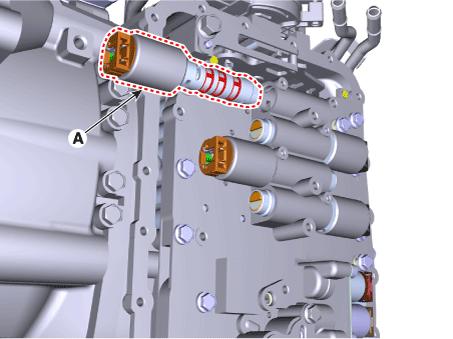

Remove the 26 brake control solenoid valve (A).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
| 2. |

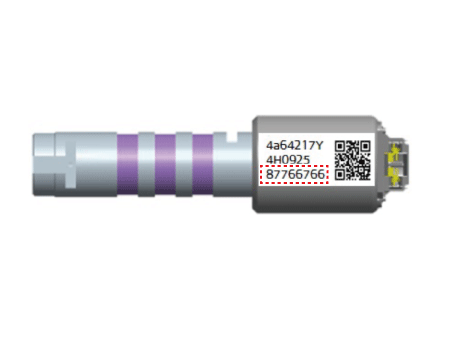

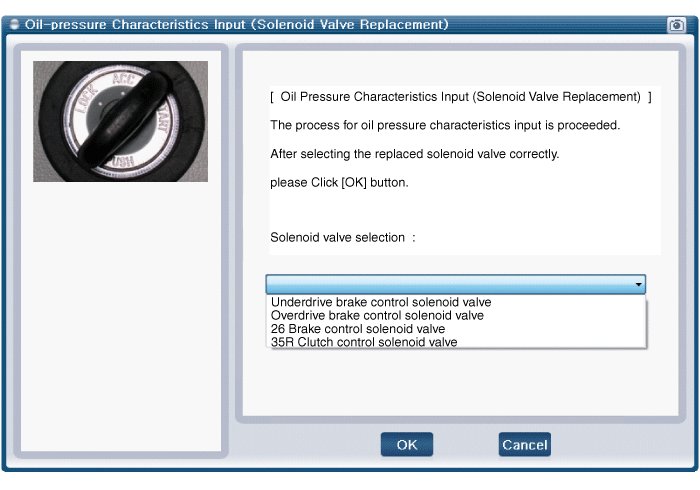

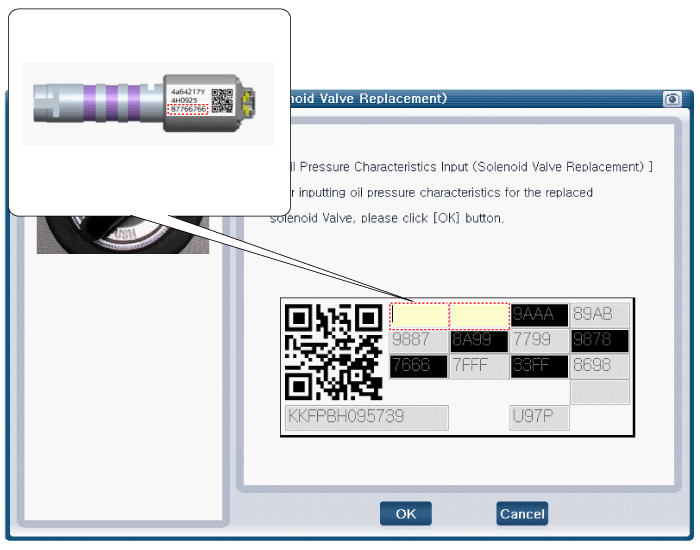

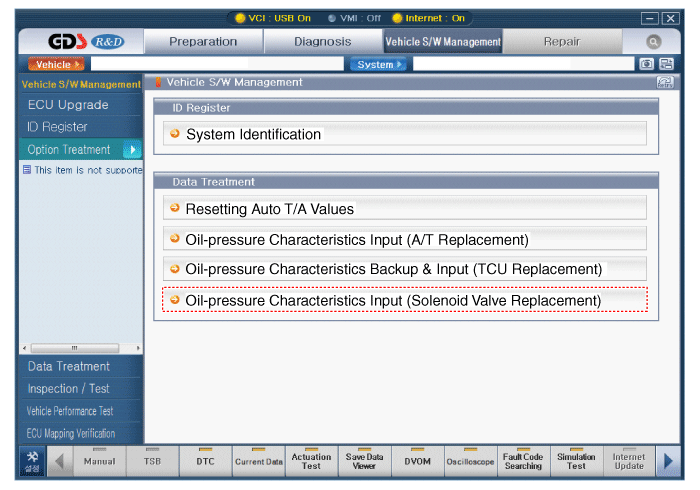

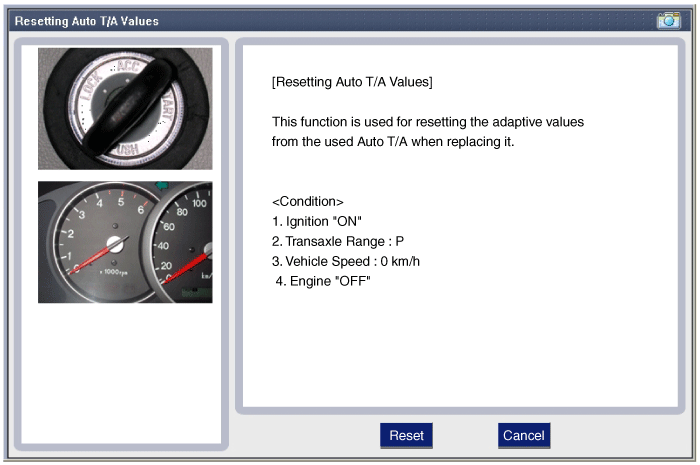

Perform the procedures below after installing.
|
