Kia Sportage QL (2015-2023) Service Manual / Engine Mechanical System / Cooling System / Components and components location

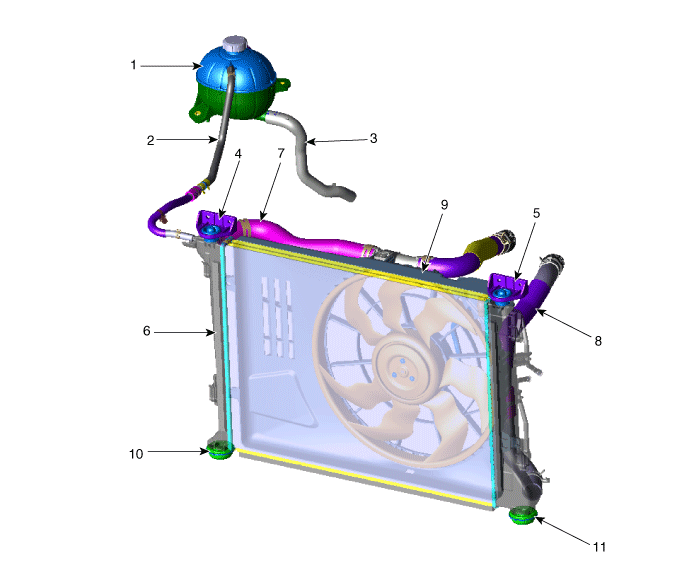

1. Reservoir tank
2. Radiator reservoir hose
3. Reservoir hose
4. Radiator upper bracket [RH]
5. Radiator upper bracket [LH]
6. Radiator
7. Radiator upper hose
8. Radiator lower hose
9. Cooling fan assembly
10. Radiator lower mounting insulator [RH]
11. Radiator lower mounting insulator [LH]
