Description

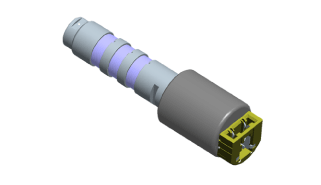

26 Brake control solenoid valve is a Variable Force Solenoid (VFS) type.
When TCM supplies variable current to solenoid valve, hydraulic pressure of 26 brake is controlled by solenoid valve.

26 Brake control solenoid valve operation table

26/B_VFS
N/L
N, P

1

2

3

4

5

6

R


● : Connected status
26 Brake Control Solenoid Valve (26/B_VFS) Components and components location
Component Location 1. 26 Brake Control Solenoid Valve (26/B) 2. 35R Clutch Control Solenoid Valve (35R/C) 3. Underdrive Brake Control Solenoid Valve (UD/B) ...

26 Brake Control Solenoid Valve (26/B_VFS) Schematic diagrams
Circuit Diagram ...
