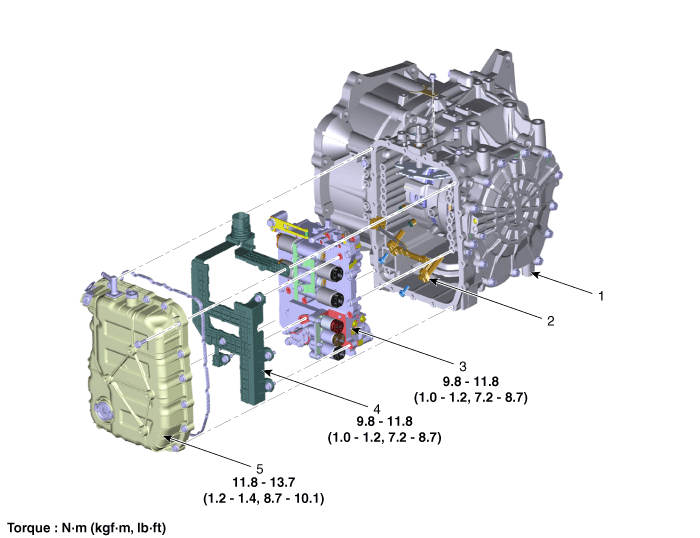

Components Location

1. Automatic transaxle
2. Input/Output speed sensor
3. Valve body assembly
4. Solenoid valve connector module
5. Valve body cover

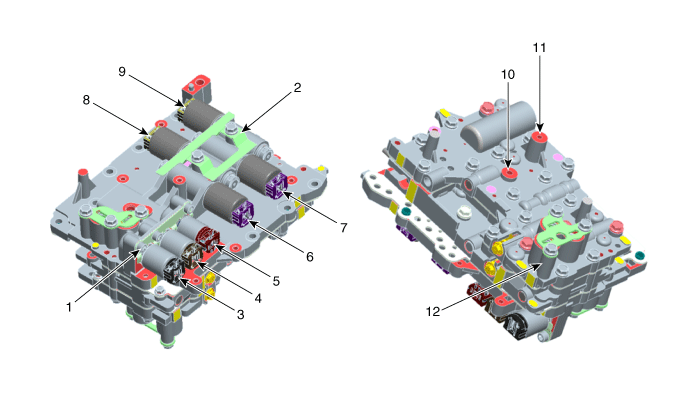

Components

1. Solenoid valve support bracket
2. Solenoid valve support bracket
3. Line Pressure Control Solenoid Valve
4. Torque Convert Control Solenoid Valve (T/CON)
5. ON/OFF solenoid valve
6. Overdrive Clutch Control Solenoid Valve (OD/C)
7. Underdrive Brake Control Solenoid Valve (UD/B)
8. 35R Clutch Control Solenoid Valve (35R/C)
9. 26 Brake Control Solenoid Valve (26B)
10. LR/B pressure flow hole
11. UD/B pressure flow hole
12. Accumulator
















Fluid Repair procedures
Inspection Automatic Transaxle Fluid (ATF) Level Check    The regular maintenance (level check) of 6-speed aut ...

Valve Body Repair procedures
Replacement    It is not recommended to replace the valve body or each solenoid valve individually. If the val ...
