Kia Sportage: Automatic Transaxle Control System / Fluid Repair procedures

Kia Sportage QL (2015-2024) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Fluid Repair procedures

Inspection

Automatic Transaxle Fluid (ATF) Level Check

The regular maintenance (level check) of 6-speed automatic transaxle fluid is not normally needed, but if a leak is detected, leak repair and check should be performed.

When checking the ATF level, be careful not to allow foreign substance (like dust) to enter through the filler hole.

1.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

2.	Add 0.7 liters of ATF SP-IV through the ATF filler hole after removing the eyebolt (A).

Start the engine to warm up the ATF.

Do not step on the brake and accelerator simultaneously to warm up the ATF.

4.	Check by using KDS/GDS that the temperature of the ATF is between 50°C and 60°C (122-140°F).

Move the shift lever slowly from "P" to "D", then back to "P". Repeat this sequence a total of two times and then move the shift lever to "N" range.

Pause in each range for more than 2 seconds.

6.	Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

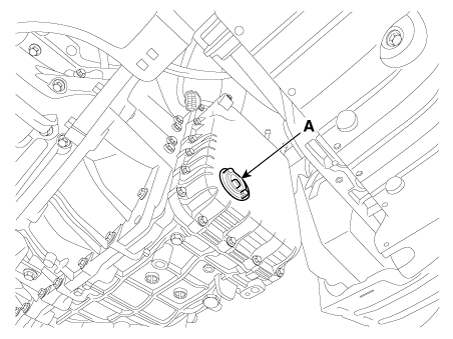

Lift the vehicle and remove the ATF level plug (A) from the valve body cover.

When removing the ATF level plug, keep the vehicle on a level ground.

Check the ATF level.

Normal: ATF flows out in a thin oil stream.

Excessive (abnormal): Over 0.9 liters of ATF flows out for 2 minutes.

Insufficient (abnormal): There is no fluid flow.

If the ATF level is too high or low, follow the instructions below.

•	Excessive: Drain until the ATF flows out in a thin oil stream.

•	Insufficient: Add until the ATF flows out in a thin oil stream.

Install the ATF level plug (A).

The existing ATF level plug O-ring (A) must be replaced with a new one. (Do not reuse it.)

10.

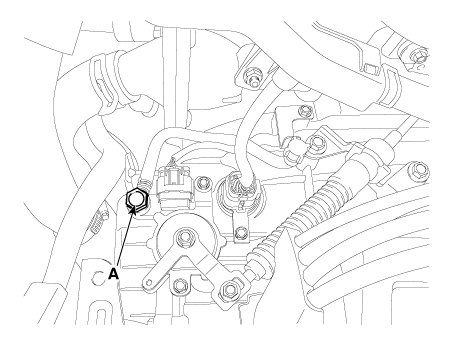

Lower the vehicle and install the eyebolt (A).

Tightening torque :

4.9 - 5.9 N·m (0.5 - 0.6 kgf·m, 3.6 - 4.3 lb·ft)

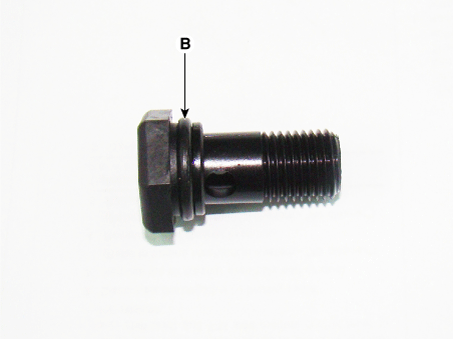

The existing eyebolt O-ring (B) must be replaced with a new one. (Do not reuse it.)

Replacement

The 6-speed automatic transaxle fluid does not need to be replaced in normal driving condition, but in severe driving conditions, it should be replaced every 60,000 miles (100,000 km ).

Severe driving conditions include:

•	Driving on rough roads (bumpy, gravel, snowy, unpaved road, etc.)

•	Driving on mountainous roads; ascent/descent

•	Repetition of short distance driving

•	More than 50% driving in heavy city traffic in hot weather above 32°C (89.6°F)

•	Police cars, taxis, commercial vehicles or towing vehicles, etc.

1.	Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover")

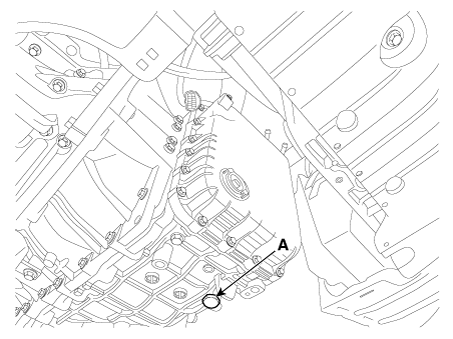

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

Tightening torque :

33.3 - 43.1 N·m (3.4 - 4.4 kgf·m, 24.6 - 31.8 lb·ft)

The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)

3.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

4.	Remove the eyebolt (A).

5.	Fill the automatic transaxle with about 5.0 liters of ATF SP-IV through the ATF filler hole.

6.	Perform the ATF level check procedure. (Refer to Fluid - "Inspection")

Fluid Components and components location

Components Location 1. ATF filler hole (eyebolt) 2. ATF level plug 3. ATF drain plug ...

Valve Body Components and components location

Components Location 1. Automatic transaxle 2. Input/Output speed sensor 3. Valve body assembly 4. Solenoid valve connector module 5. Valve body ...
