Removal
Door Mirror Turn Signal Lamp
1.
Disconnect the negative (-) battery terminal.
2.

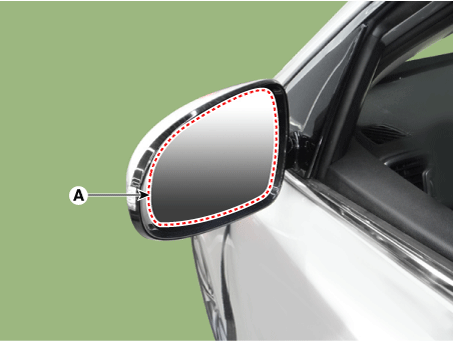

Remove the mirror (A) from the mirror holder.

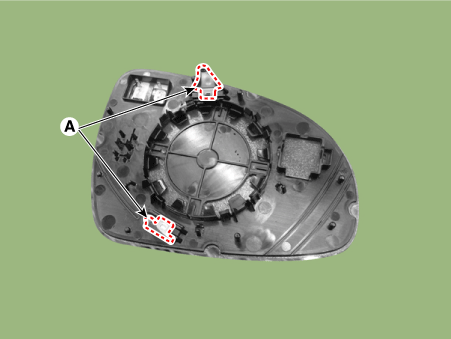

Be careful not to damage the fixing clips (A).

3.

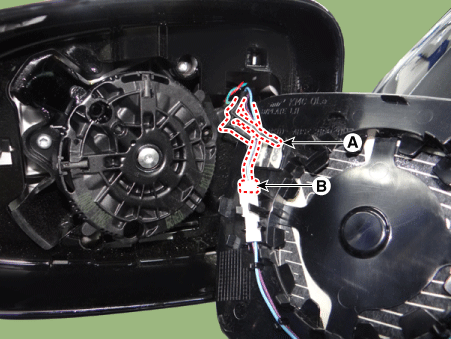

Disconnect the heating connectors (A) and BSD indicator connector (B) from the mirror.

4.

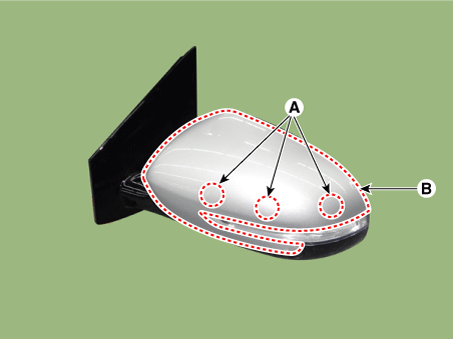

Remove the door mirror housing (B) after separating the mounting clip (A).

5.

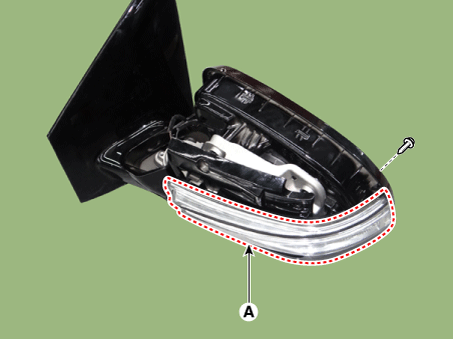

Remove the door mirror turn signal lamp (A) after loosening the screw.

6.

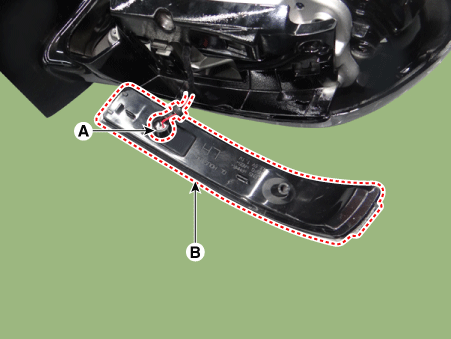

Disconnect the connector (A) from the door mirror turn signal lamp (B).

Installation
1.
Install the door mirror turn signal lamp.
2.
Install the door mirror housing.
3.
Install the door mirror.
4.
Connect the negative (-) battery terminal.
