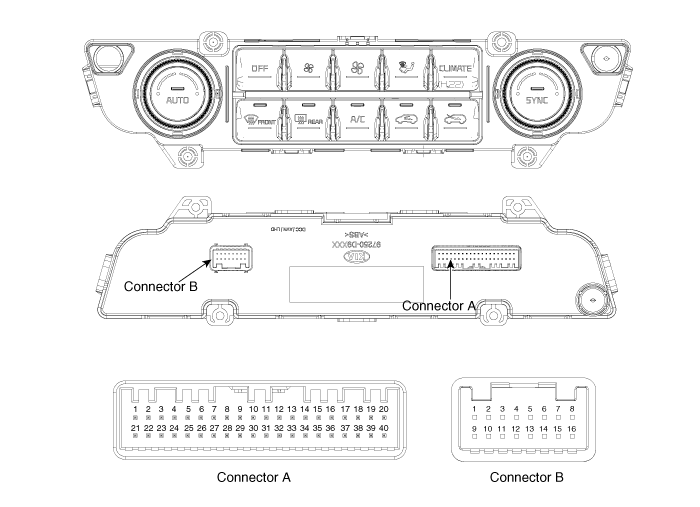

Components (1)
| [AUDIO Type] |
| Connector Pin Function |
|
Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
|
A |
1 |
Battery (+) |
A |
29 |
Ambient Temperature Sensor |
|
2 |
ILL+ (TAIL) |
30 |
Cluster Ionizer Diagnosis |
||
|
3 |
IGN2 |
31 |
CLEAN Signal |
||
|
4 |
Mode Control Actuator (VENT) |
32 |
Hazard Signal |
||
|
5 |
Mode Control Actuator (DEF) |
33 |
PTC ON Signal (Diesel Only) |
||
|
6 |
Driver Side Temperature Control Actuator (COOL) |
34 |
PTC Relay 2 (Diesel Only) |
||
|
7 |
Driver Side Temperature Control Actuator (WARM) |
35 |
PTC Relay 3 (Diesel Only) |
||
|
8 |
Intake Actuator (FRE) |
36 |
Hazard Indicator Blinking |
||
|
9 |
Intake Actuator (REC) |
37 |
ECV (-) Ground |
||
|
10 |
Mode Control Actuator F/B |
38 |
ECV (+) |
||
|
11 |
Driver Side Temperature Control Actuator F/B |
39 |
PAB OFF Signal |
||
|
12 |
Intake Actuator F/B |
40 |
Ground |
||
|
13 |
DETENT OUT(-) |
B |
1 |
Sensor REF (+5V) |
|
|
14 |
C CAN HIGH |
2 |
Passenger Side Temperature Control Actuator F/B |
||
|
15 |
C CAN LOW |
3 |
Passenger Side Temperature Control Actuator (COOL) |
||
|
16 |
Blower Motor (+) |
4 |
Passenger Side Temperature Control Actuator (WARM) |
||
|
17 |
Mosfet (Drain F/B) |
5 |
Auto Defogging Actuator F/B |
||
|
18 |
Mosfet (Gate) |
6 |
Auto Defogging Actuator (OPEN) |
||
|
19 |
PAB ON Signal |
7 |
Auto Defogging Actuator (ClOSE) |
||
|
20 |
ILL- (RHEO) |
8 |
SBR |
||
|
21 |
IGN1 |
9 |
Defogging Temperature |
||
|
22 |
ISG Power |
10 |
Defogging SCK |
||
|
23 |
Rear Defogging Switch |
11 |
Defogging Data |
||
|
24 |
HTD |
12 |
Rear Left SBR |
||
|
25 |
Left Photo Sensor (-) |
13 |
Rear Center SBR |
||
|
26 |
Right Photo Sensor (-) |
14 |
Rear Right SBR |
||
|
27 |
PAB IGN1 |
15 |
Sensor Ground |
||
|
28 |
Evaporator Temperature Sensor |
16 |
Ground |

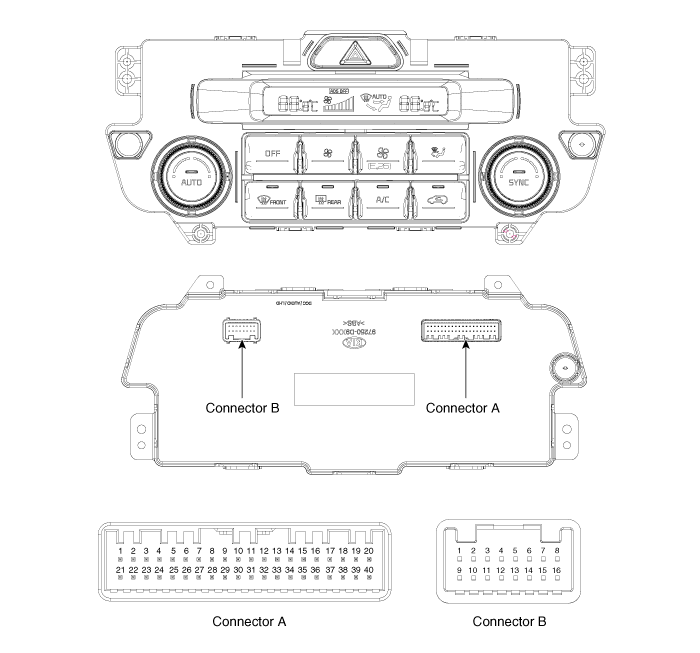

Components (2)
| [AVN Type] |
| Connector Pin Function |
|
Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
|
A |
1 |
Battery (+) |
A |
29 |
Ambient Temperature Sensor |
|
2 |
ILL+ (TAIL) |
30 |
Cluster Ionizer Diagnosis |
||
|
3 |
IGN2 |
31 |
CLEAN Signal |
||
|
4 |
Mode Control Actuator (VENT) |
32 |
- |
||
|
5 |
Mode Control Actuator (DEF) |
33 |
PTC ON Signal (Diesel Only) |
||
|
6 |
Driver Side Temperature Control Actuator (COOL) |
34 |
PTC Relay 2 (Diesel Only) |
||
|
7 |
Driver Side Temperature Control Actuator (WARM) |
35 |
PTC Relay 3 (Diesel Only) |
||
|
8 |
Intake Actuator (FRE) |
36 |
- |
||
|
9 |
Intake Actuator (REC) |
37 |
ECV (-) Ground |
||
|
10 |
Mode Control Actuator F/B |
38 |
ECV (+) |
||
|
11 |
Driver Side Temperature Control Actuator F/B |
39 |
- |
||
|
12 |
Intake Actuator F/B |
40 |
Ground |
||
|
13 |
DETENT OUT(-) |
B |
1 |
Sensor REF (+5V) |
|
|
14 |
C CAN HIGH |
2 |
Passenger Side Temperature Control Actuator F/B |
||
|
15 |
C CAN LOW |
3 |
Passenger Side Temperature Control Actuator (COOL) |
||
|
16 |
Blower Motor (+) |
4 |
Passenger Side Temperature Control Actuator (WARM) |
||
|
17 |
Mosfet (Drain F/B) |
5 |
Auto Defogging Actuator F/B |
||
|
18 |
Mosfet (Gate) |
6 |
Auto Defogging Actuator (OPEN) |
||
|
19 |
- |
7 |
Auto Defogging Actuator (ClOSE) |
||
|
20 |
ILL- (RHEO) |
8 |
- |
||
|
21 |
IGN1 |
9 |
Defogging Temperature |
||
|
22 |
ISG Power |
10 |
Defogging SCK |
||
|
23 |
Rear Defogging Switch |
11 |
Defogging Data |
||
|
24 |
HTD |
12 |
- |
||
|
25 |
Left Photo Sensor (-) |
13 |
- |
||
|
26 |
Right Photo Sensor (-) |
14 |
- |
||
|
27 |
- |
15 |
Sensor Ground |
||
|
28 |
Evaporator Temperature Sensor |
16 |
Ground |
Heater & A/C Control Unit (Manual) Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash ...
Heater & A/C Control Unit (DATC) Repair procedures
Self Diagnosis
1.
Self-diagnosis process
2.
How to read self-diagnostic code
After the display panel flickers three tim ...
