Kia Sportage: Smart Key System / Smart Key Unit Schematic diagrams

Kia Sportage QL (2015-2026) Service Manual / Body Electrical System / Smart Key System / Smart Key Unit Schematic diagrams

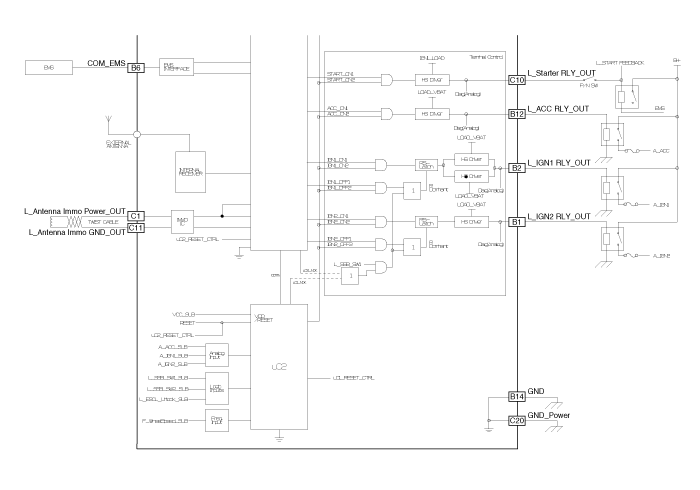

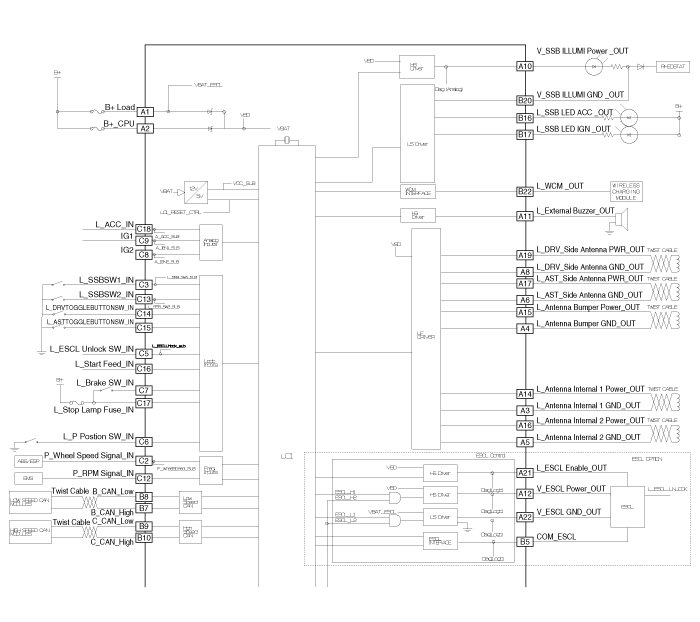

Circuit Diagram
