Kia Sportage: Power Door Mirrors / Power Door Mirror Switch Components and components location
Kia Sportage QL (2015-2019) Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch Components and components location

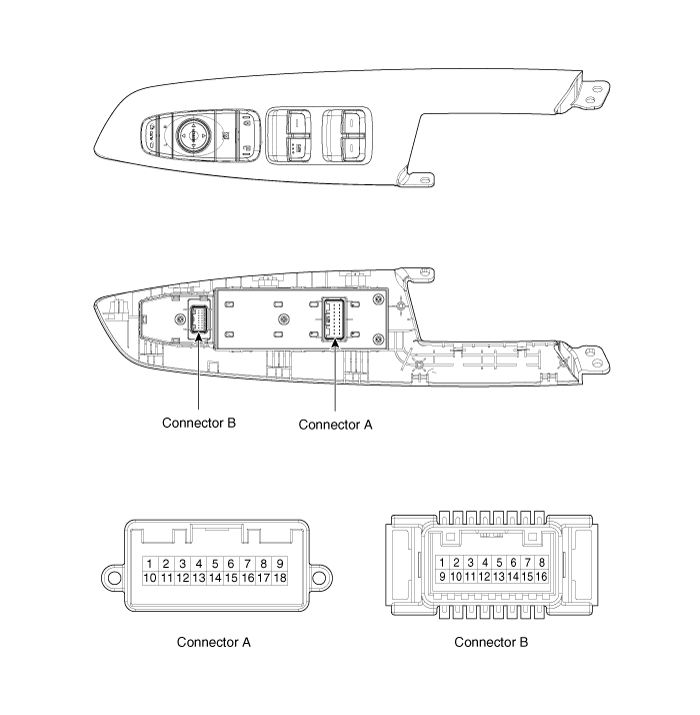

| Component |
| Connector Pin Information |
[Connector A]
(Driver Power Window Switch (Safety))
|
No. |
Description |
No. |
Description |
|
1 |
Right power window switch (Lock) |
10 |
Battery RH (+) |
|
2 |
Front right power window (Up) |
11 |
Rear right power window (Up) |
|
3 |
Front right power window (Down) |
12 |
Rear right power window (Down) |
|
4 |
- |
13 |
Taill lamp |
|
5 |
Door lock switch |
14 |
Door unlock switch |
|
6 |
Front left power window (Auto) |
15 |
Battery LH (+) |
|
7 |
Front left power window (Up) |
16 |
Rear left power window (Up) |
|
8 |
Front left power window (Down) |
17 |
Rear left power window (Down) |
|
9 |
Left power window switch (Lock) |
18 |
Ground |
(Driver Power Window Switch (Safety) + Door Lock Indicator)
|
No. |
Description |
No. |
Description |
|
1 |
Right power window switch (Lock) |
10 |
Battery RH (+) |
|
2 |
Front right power window (Up) |
11 |
Rear right power window (Up) |
|
3 |
Front right power window (Down) |
12 |
Rear right power window (Down) |
|
4 |
Door lock indicator |
13 |
Taill lamp |
|
5 |
Door lock switch |
14 |
Door unlock switch |
|
6 |
Front left power window (Auto) |
15 |
Battery LH (+) |
|
7 |
Front left power window (Up) |
16 |
Rear left power window (Up) |
|
8 |
Front left power window (Down) |
17 |
Rear left power window (Down) |
|
9 |
Left power window switch (Lock) |
18 |
Ground |
(Power Window Switch (Auto Down))
|
No. |
Description |
No. |
Description |
|
1 |
Right power window switch (Lock) |
10 |
Battery RH (+) |
|
2 |
Front right power window (Up) |
11 |
Rear right power window (Up) |
|
3 |
Front right power window (Down) |
12 |
Rear right power window (Down) |
|
4 |
- |
13 |
Taill lamp |
|
5 |
Door lock switch |
14 |
Door unlock switch |
|
6 |
- |
15 |
Battery LH (+) |
|
7 |
Front left power window (Up) |
16 |
Rear left power window (Up) |
|
8 |
Front left power window (Down) |
17 |
Rear left power window (Down) |
|
9 |
Left power window switch (Lock) |
18 |
Ground |
(Power Window Switch (Auto Down) + Door Lock Indicator)
|
No. |
Description |
No. |
Description |
|
1 |
Right power window switch (Lock) |
10 |
Battery RH (+) |
|
2 |
Front right power window (Up) |
11 |
Rear right power window (Up) |
|
3 |
Front right power window (Down) |
12 |
Rear right power window (Down) |
|
4 |
Door lock indicator |
13 |
Taill lamp |
|
5 |
Door lock switch |
14 |
Door unlock switch |
|
6 |
- |
15 |
Battery LH (+) |
|
7 |
Front left power window (Up) |
16 |
Rear left power window (Up) |
|
8 |
Front left power window (Down) |
17 |
Rear left power window (Down) |
|
9 |
Left power window switch (Lock) |
18 |
Ground |
[Connector B]
(Mirror Non Folding Type)
|
No. |
Description |
No. |
Description |
|
1 |
- |
9 |
Mirror vertical switch |
|
2 |
- |
10 |
Left mirror common |
|
3 |
- |
11 |
Left mirror horizontal switch |
|
4 |
- |
12 |
Tail lamp |
|
5 |
Ground (Inside) |
13 |
- |
|
6 |
Ground (Outside) |
14 |
Right mirror horizontal switch |
|
7 |
- |
15 |
Right mirror common |
|
8 |
- |
16 |
ACC |
(Mirror Folding Type)
|
No. |
Description |
No. |
Description |
|
1 |
- |
9 |
Mirror vertical switch |
|
2 |
- |
10 |
Left mirror common |
|
3 |
Mirror unfolding switch |
11 |
Left mirror horizontal switch |
|
4 |
Mirror foldind switch |
12 |
Tail lamp |
|
5 |
Ground (Inside) |
13 |
- |
|
6 |
Ground (Outside) |
14 |
Right mirror horizontal switch |
|
7 |
- |
15 |
Right mirror common |
|
8 |
- |
16 |
ACC |
Components and components location
Component Location
1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
...
Power Door Mirror Switch Schematic diagrams
Circuit Diagram
...
