Kia Sportage: Electric Power Steering / Schematic diagrams
Kia Sportage QL (2015-2025) Service Manual / Steering System / Electric Power Steering / Schematic diagrams

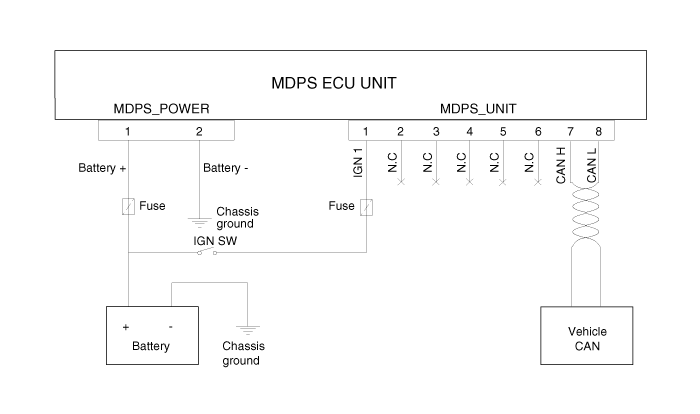

| Schematic Diagrams |

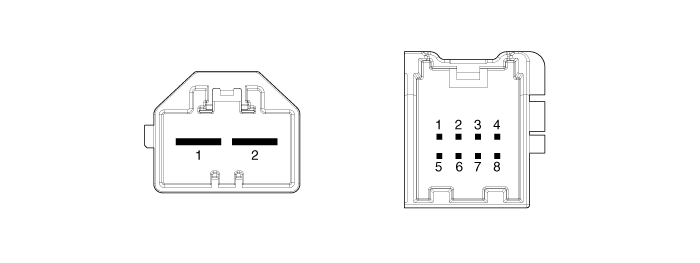

Harness Connector
|
Item |
Pin |
Pin name |
|
MDPS Power |
1 |
Battery + |
|
2 |
Battery - |
|
|
MDPS Unit |
1 |
Ignition |
|
7 |
CAN High |
|
|
8 |
CAN Low |
Components and components location
Components
1. Steering
column
2. ECU
3. Motor
...
Repair procedures
General Inspection
Before and after servicing the EPS system, perform the troubleshooting and test
procedure as follows. Compare the system condition with normal condition in
the ...
