Kia Sportage: Interior lights / Map lamp

Kia Sportage QL (2015-2020) Owners Manual / Features of your vehicle / Interior lights / Map lamp

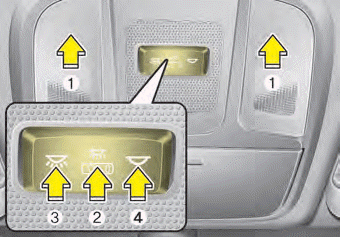

■ Type A

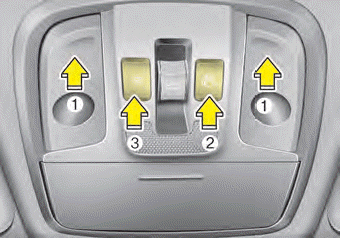

■ Type B

Press the lens (1) to turn ON the map lamp.

To turn the map lamp OFF press the lens (1) again.

(2) : DOOR mode

- The map lamp and room lamp come on when a door is opened. The lamps go out after approximately 30 seconds.
- The map lamp and room lamp come on for approximately 30 seconds when doors are unlocked with a transmitter or smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 minutes if a door is opened with the ignition switch in the ACC or LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is opened with the ignition switch in the ON position.
- The map lamp and room lamp will go out immediately if the ignition switch is changed to the ON position or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).

✽ NOTICE

The DOOR mode and ROOM mode can not be selected at the same time.

Front Room Lamp:

• Type A

(3): Press this switch to turn the front and rear room lamps on.

(4): Press this switch to turn the front and rear room lamps off.

• Type B

(3): Press this switch to turn the front and rear room lamps on and off.

Room lamp
■ Type A ■ Type B : The light stays on at all times. ...

Liftgate room lamp
The liftgate room lamp comes on when the liftgate is opened. ✽ NOTICE The liftgate lamp comes on as long as the liftgate lid is open. To prevent unnecessary charging system drain, close the li ...
