Kia Sportage: Fuel Delivery System / Fuel Pressure Sensor (FPS) Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Sensor (FPS) Schematic diagrams

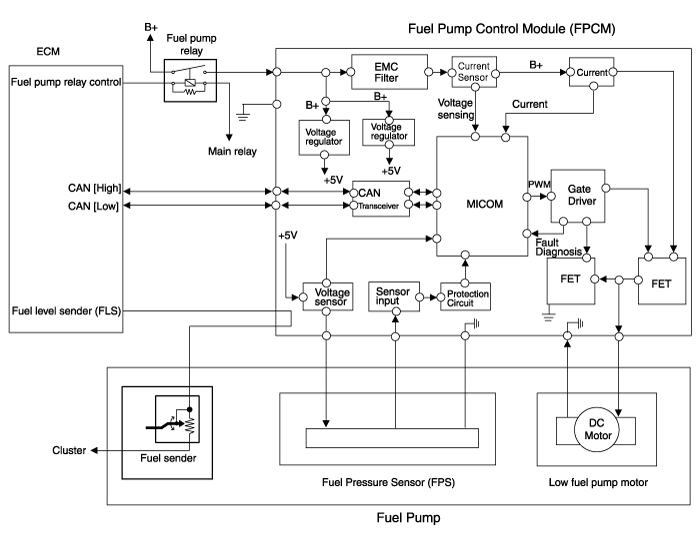

Circuit Diagram

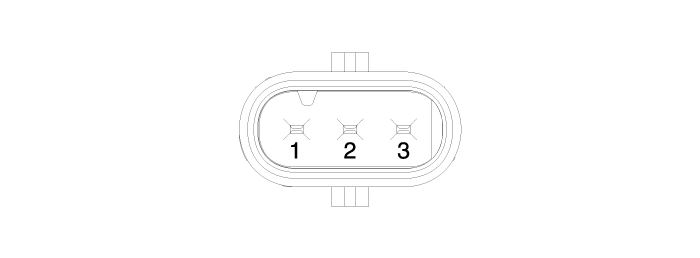

Terminal Illustration

Terminal Function

No.	Function	Connected to
1	Fuel Pressure sensor (FPS) power supply	Fuel Pump Control Module (FPCM)
2	Fuel Pressure sensor (FPS) signal input	Fuel Pump Control Module (FPCM)
3	Fuel Pressure sensor (FPS) groun	Fuel Pump Control Module (FPCM)
