Kia Sportage: Rear Seat Belt / Rear Seat Belt Retractor Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor Repair procedures

Replacement

When installing the belt, be careful not to damage the retractor.

1.	Remove the rear pillar trim. (Refer to Interior Trim - "Rear Pillar Trim")

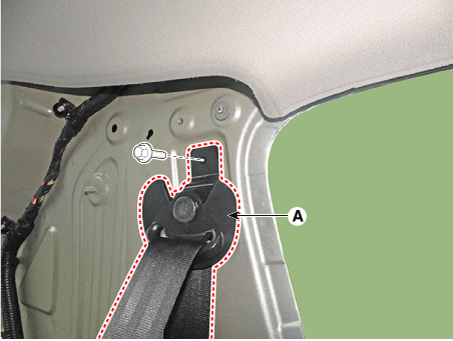

Remove the rear seat belt upper anchor (A) after loosening the mounting bolts.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)

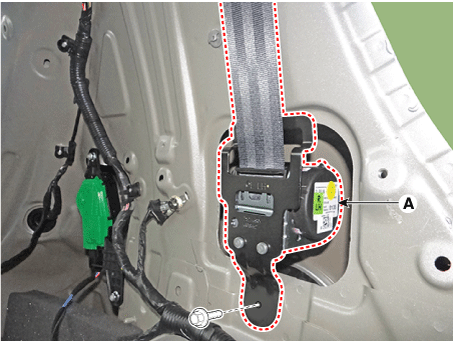

Remove the rear seat belt retractor (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)

Install in the reverse order of removal.

•	Make sure the connector is plugged in properly.

•	Replace any damaged clips (or pin-type retainers).

Rear Seat Belt Retractor Components and components location

Component Location 1. Rear seat belt retractor [LH] 2. Rear seat belt retractor [RH] ...

Rear Center Seat Belt Retractor Components and components location

Component Location 1. Rear center seat belt retractor ...
