Description

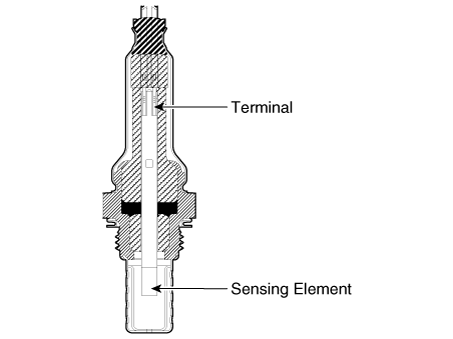

Heated Oxygen Sensor (HO2S) consists of zirconium and alumina and is installed both upstream and downstream of the Manifold Catalytic Converter. The sensor output voltage varies in accordance with the air/fuel ratio.
The sensor must be hot in order to operate normally. To keep it hot, the sensor has a heater which is controlled by the ECM via a duty cycle signal. When the exhaust gas temperature is lower than the specified value, the heater warms the sensor tip.

Heated Oxygen Sensor (HO2S) Specifications
Specification HO2S [Bank 1/Sensor 1] Item Specification Heater Resistance (Ω) 2.5 - 4.0 [20°C(68°F)] HO2S ...

Heated Oxygen Sensor (HO2S) Schematic diagrams
Circuit Diagram Harness Connector [Bank 1 / Sensor 1] [Bank 1 / Sensor 2] ...
