Kia Sportage: Rear Seat Belt / Rear Seat Belt Retractor Components and components location

Kia Sportage QL (2015-2022) Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor Components and components location

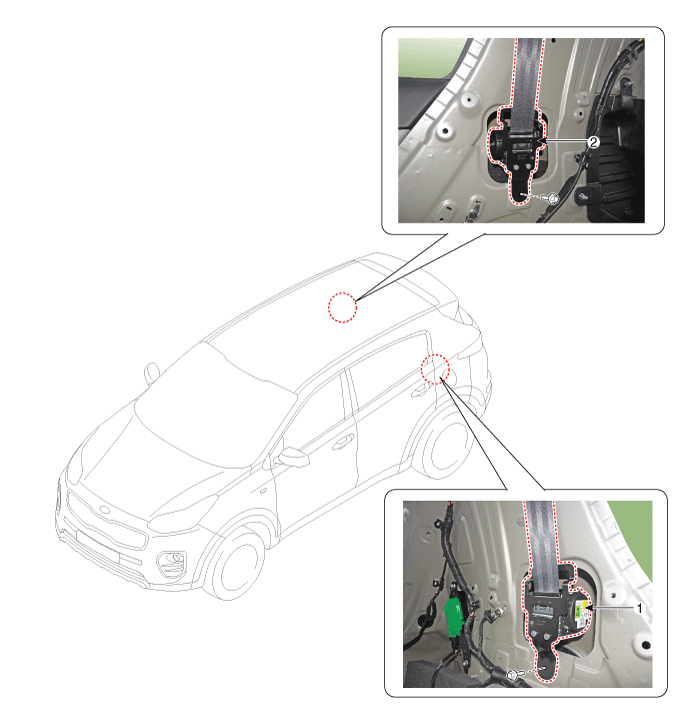

Component Location

1. Rear seat belt retractor [LH]

2. Rear seat belt retractor [RH]
