Kia Sportage: Engine Control System / Rail Pressure Sensor (RPS) Troubleshooting

Kia Sportage QL (2015-2019) Service Manual / Engine Control / Fuel System / Engine Control System / Rail Pressure Sensor (RPS) Troubleshooting

Signal Waveform

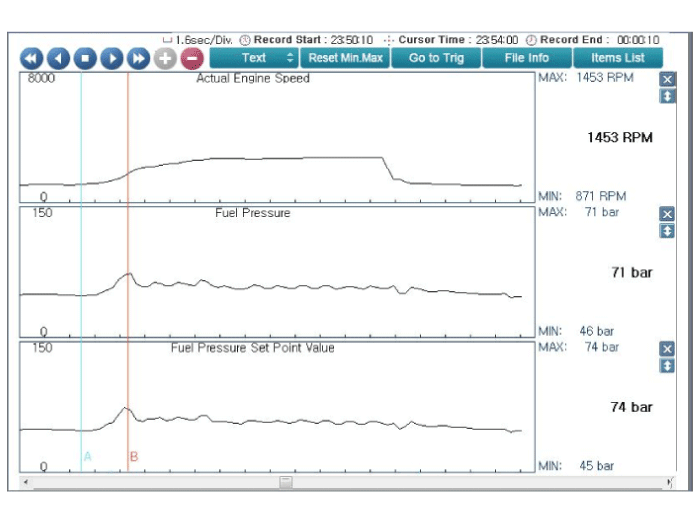

Service data review releated with fuel pressure sensor at idle and acceleration.
(Inspect low pressure fuel line between fuel pump and high pressure pump first when the pressure of low pressure line is displayed low at idle.)
A : Idle
B : Acceleration
Rail Pressure Sensor (RPS) Repair procedures
Inspection 1. Connect the KDS/GDS on the Data Link Connector (DLC). 2. Measure the output voltage and fuel pressure of the RPS at idle a ...
