Kia Sportage: Engine Control System / Accelerator Position Sensor (APS) Specifications
Accelerator
Position
|
Output Voltage (V) [Vref = 5V]
|
APS1
|
APS2
|
C.T
|
0.7 - 0.8
|
0.33 - 0.43
|
W.O.T
|
3.98 - 4.22
|
1.93 - 2.17
|

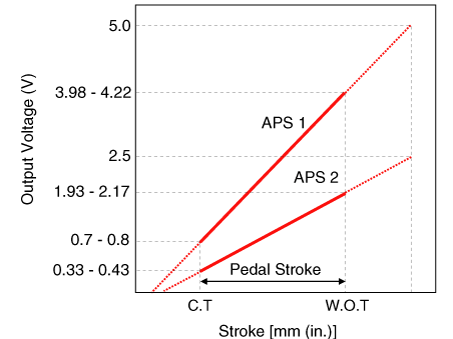

![](images/accelerator_position_sensor_aps_specifications-848/601/sqlf46510e.gif)
Signal Waveform
Service data review releated with fuel pressure sensor at idle and acceleration.
(Inspect low pressure fuel line between fuel pump and high pressure pump firs ...
Description
Accelerator Position Sensor (APS) is installed on the accelerator pedal module
and detects the rotation angle of the accelerator pedal. The APS is one of the
most imp ...
Other information:
Circuit Diagram
Terminal Information
Terminal Illustration
Terminal Function
No.
Function
Connected to
1
Rail pressure sensor power (+5V)
ECM Connector A (10 ...
Inspection
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash pad lower panel")
3.
Remove the cras ...
