Kia Sportage QL (2015-2023) Service Manual / Body Electrical System / Seat Electrical / Air Ventilation Seat Components and components location

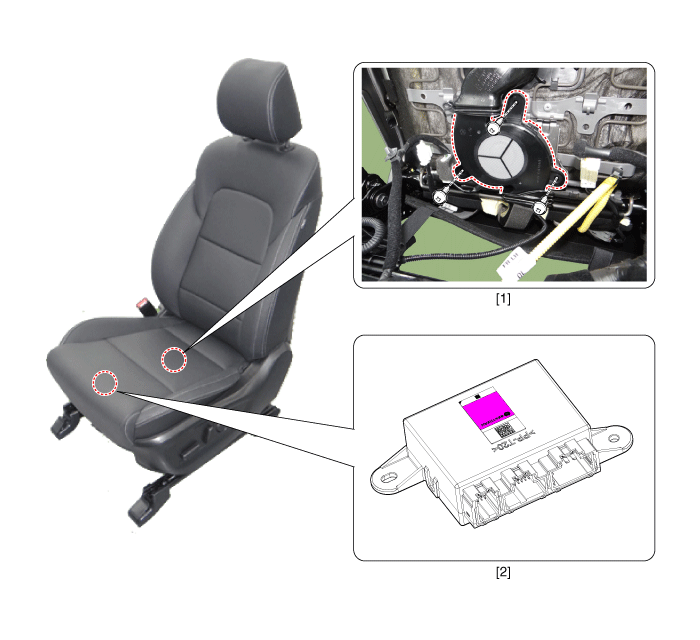

Component Location

1. Ventilation seat blower
2. Ventilation seat unit (Assist seat only)

Seat Heater Switch Repair procedures
Removal [Front Seat] 1. Disconnect the negative (-) battery terminal. 2. Remove the center fascia lower panel. (Refer to bo ...

Air Ventilation Seat Schematic diagrams
Circuit Diagram ...
