Kia Sportage: Fuel Filler Door / Components and components location

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Fuel Filler Door / Components and components location

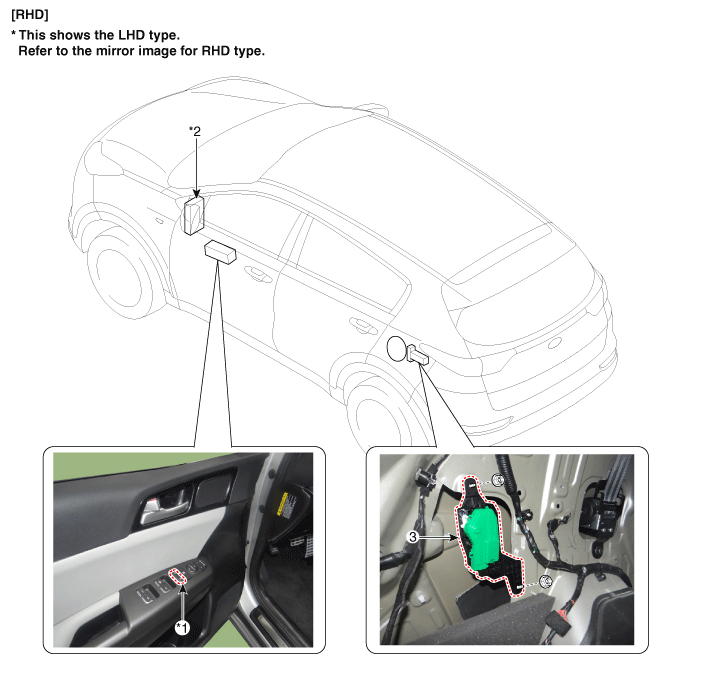

Component Location

1. Fuel filler door lock/unlock switch
2. Smart junction block (SJB)
3. Fuel filler door unlock actuator

Fuel Filler Door

Description and operation
Description Fuel filler door lock/unlock switch There is no seprate lock/unlock switch for fuel filler door. It is operated in association with lock/unlock of all doors by pow ...
