Kia Sportage: Operation of the parking assist system / Operating condition
.png)

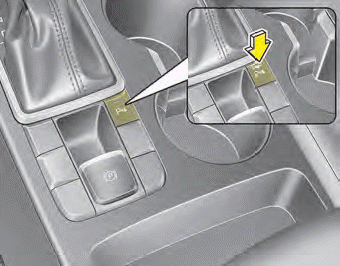

- This system activates when the parking assist system button is pressed
with the ignition switch ON.
- The indicator of the parking assist system button turns on automatically
and activates the parking assist system when you shift the gear to the R (Reverse)
position. It will turn off automatically when you drive above 18.6 mph (30 km/h).
- The sensing distance while backing up is approximately 47 in (120 cm).
when you are driving less than 6.2 mph (10 km/h).
- The sensing distance while moving forward is approximately 39 in. (100
cm) when you are driving less than 6.2 mph (10 km/h).
- When more than two objects are sensed at the same time, the closest one
will be recognized first.
- The side sensors are activated when you shift the gear to the R (Reverse)
position.
- If the vehicle speed is above 12.4 mph (20 km/h), the system automatically
turns off. To activate again, push the button.
✽ NOTICE
It may not operate if it’s distance from the object is already less than approximately
9 in (25 cm) when the system is ON.
✽ NOTICE
The actual warning sound and indicator may differ from the illustration
according to objects or sensor status.
Do not wash the vehicle's sensor with high pressure water.
