Kia Sportage: Rear Seat / Rear Back Armrest Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Back Armrest Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the rear door module.
(Refer to Rear Door - "Rear Door Module")
2.

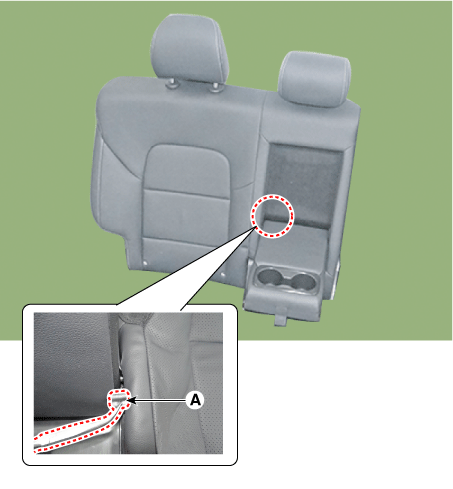

Remove the rear back armrest mounting clip (A).

3.

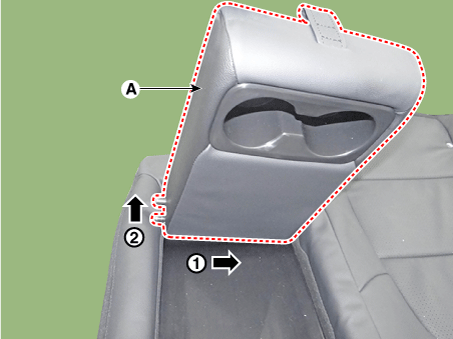

Remove the rear back armrest (A).

4.
Install in the reverse order of removal.

Make sure that the connectors are plugged in properly.
Replace any damaged clips.
Rear Back Armrest Components and components location
Component Location 1. Rear back armrest ...
