Kia Sportage: Brake System / Master Cylinder Components and components location

Kia Sportage QL (2015-2021) Service Manual / Brake System / Brake System / Master Cylinder Components and components location

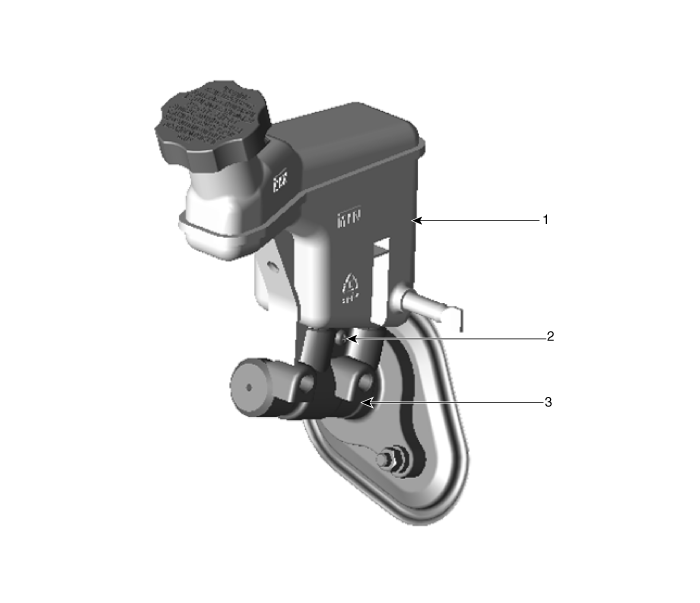

Components

1. Reservoir
2. Screw
3. Master cylinder
