Kia Sportage: Engine Control System / Knock Sensor (KS) Description and operation

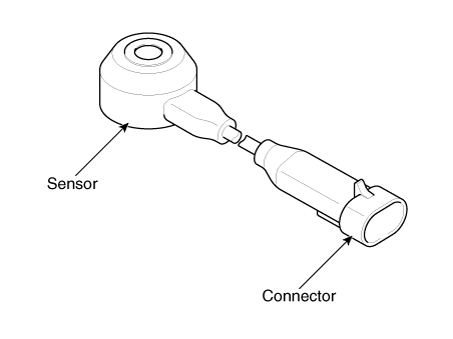

Knocking is a phenomenon characterized by undesirable vibration and noise and can cause engine damage. Knock Sensor (KS) is installed on the cylinder block and senses engine knocking.

When knocking occurs, the vibration from the cylinder block is applied as pressure to the piezoelectric element. When a knock occurs, the sensor produces voltage signal. The ECM retards the ignition timing when knocking occurs. If the knocking disappears after retarding the ignition timing, the ECM will advance the ignition timing. This sequential control can improve engine power, torque and fuel economy.

Knock Sensor (KS) Specifications

Specification Item Specification Capacitance (pF) 850 - 1,150 Resistance (MΩ) About 4.87 ...

Knock Sensor (KS) Schematic diagrams

Circuit Diagram Harnecss Connector ...
