Kia Sportage: Engine Control System / Knock Sensor (KS) Schematic diagrams

Kia Sportage QL (2015-2020) Service Manual / Engine Control / Fuel System / Engine Control System / Knock Sensor (KS) Schematic diagrams

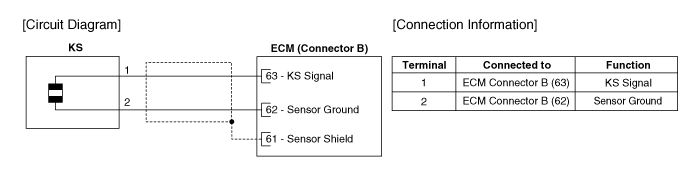

Circuit Diagram

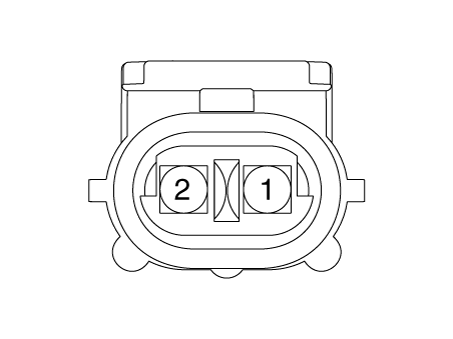

Harnecss Connector

Knock Sensor (KS) Description and operation
Description Knocking is a phenomenon characterized by undesirable vibration and noise and can cause engine damage. Knock Sensor (KS) is installed on the cylinder block and senses ...

Knock Sensor (KS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the knock sensor connector (A). 3. Meas ...
