Kia Sportage: Manual heating and air conditioning / Air conditioning

Kia Sportage QL (2015-2019) Owners Manual / Features of your vehicle / Automatic climate control system / Manual heating and air conditioning / Air conditioning

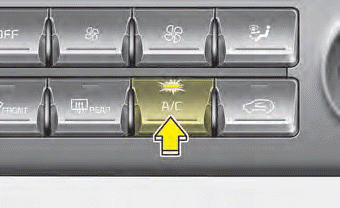

■ Type A

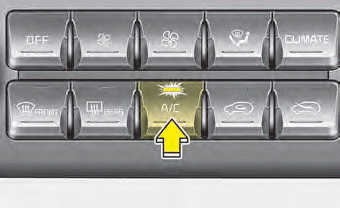

■ Type B

Press the A/C button to turn the air conditioning system on (indicator light will illuminate).

Press the button again to turn the air conditioning system off.

WARNING - Reduced Visibility

Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility.

WARNING - Recirculated Air

Continued use of the climate control system in the recirculated air position can cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.

WARNING - Sleeping with AC on

Do not sleep in a vehicle with the air conditioning or heating on as this may cause serious harm or death due to a drop in the oxygen level and/or body temperature.

Fan speed control
■ Type A ■ Type B The fan speed can be set to the desired speed by operating the fan speed control button. To change the fan speed, press () the button for higher speed, or push () th ...

OFF mode
Press the front blower OFF button to turn off the front air climate control system. However, you can still operate the mode and air intake buttons as long as the ignition switch is in the ON pos ...
