Kia Sportage: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

Kia Sportage QL (2015-2020) Service Manual / Engine Control / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

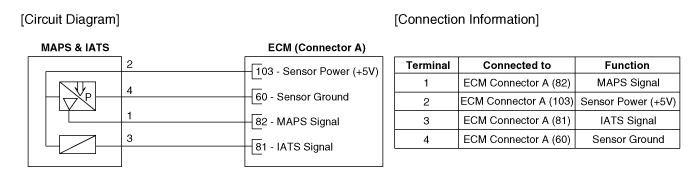

Circuit Diagram

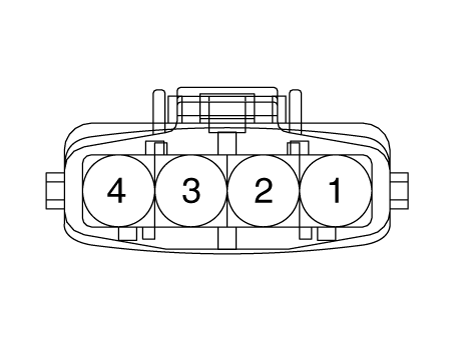

Harness Connector

Intake Air Temperature Sensor (IATS) Description and operation
Description Intake Air Temperature Sensor (IATS) is included inside Manifold Absolute Pressure Sensor and detects the intake air temperature. To calculate precise air quantity, ...

Intake Air Temperature Sensor (IATS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance betwe ...
