Kia Sportage: Engine Control System / Variable Intake Solenoid (VIS) Valve Repair procedures

Kia Sportage QL (2015-2019) Service Manual / Engine Control / Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Repair procedures

Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the VIS valve connector.
3.
Measure resistance between VIS valve terminals 1 and 2.
Specification: 30.0 - 35.0 Ω [20°C(68°F)]
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2.

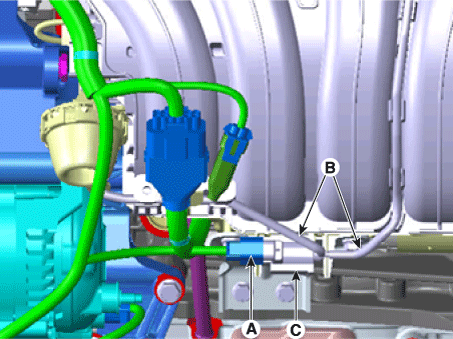

Disconnect the variable intake solenoid valve connector (A) and vacuum hoses (B).
3.
Remove the variable intake solenoid valve after loosening the mounting bolt from the surge tank.

Installation

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
Use care to keep foreign material out of the valve.
1.
Install in the reverse order of removal.
Variable Intake Solenoid (VIS) Valve Schematic diagrams
