Kia Sportage: Automatic Transaxle Control System / Input Speed Sensor Schematic diagrams

Kia Sportage QL (2015-2024) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor Schematic diagrams

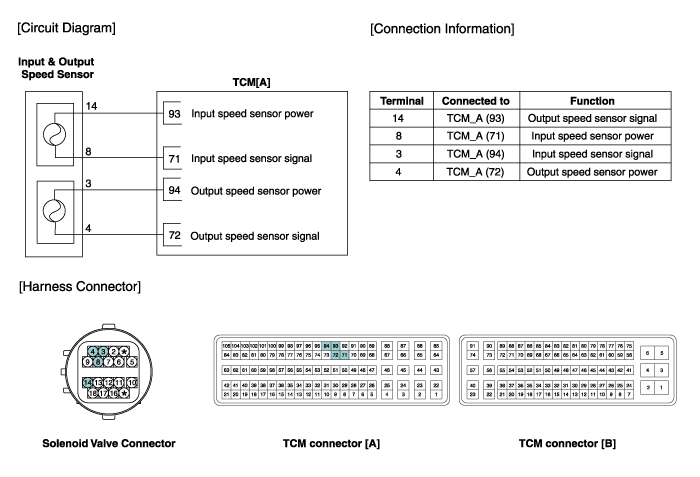

Circuit Diagram

Input Speed Sensor Description and operation
Description • Input speed sensor uses an electric current type hall sensor in which the current is changed by the magnetic variation. • ...

Input Speed Sensor Schematic diagrams
Circuit Diagram ...
