Kia Sportage: Automatic Transaxle Control System / Input Speed Sensor Schematic diagrams

Kia Sportage QL (2015-2023) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Input Speed Sensor Schematic diagrams

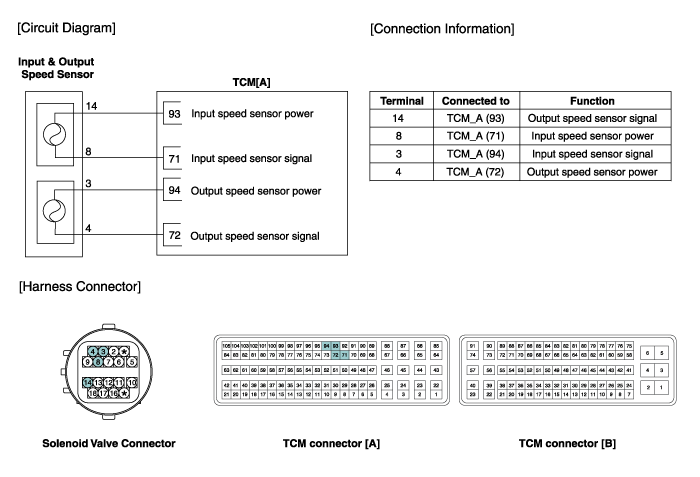

Circuit Diagram

Input Speed Sensor Schematic diagrams
Circuit Diagram ...

Output Speed Sensor Specifications
Specification Item Specification Type Hall effect sensor Operating condition (°C)°F (-40 to 150) ...
